Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of ul 3122 fiberglass braided wire in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.

Products Description

UL 3122 Fiberglass Braided Wire is a high-quality wire that meets the highest standards for safety and reliability. As an insulated wire, it provides excellent protection against electrical risks and ensures the smooth flow of current without any interruption or interference. The fiberglass braiding also provides added protection against mechanical stresses and environmental hazards.

One of the most significant advantages of UL 3122 Fiberglass Braided Wire is its versatility. It is suitable for use in a wide range of applications, from automotive and aerospace to industrial and commercial settings. This wire is also highly flexible, meaning that it can bend and flex without losing its structural integrity or electrical performance.

Another advantage of UL 3122 Fiberglass Braided Wire is its durability. The fiberglass braiding provides excellent resistance to heat, chemicals, and abrasion, ensuring that the wire can withstand even the harshest conditions without deterioration or failure.

In conclusion, UL 3122 Fiberglass Braided Wire is a top-quality wire that provides exceptional reliability, safety, and durability. It is suitable for use in various applications and environments, and its fiberglass braiding provides added protection against mechanical and environmental hazards. Overall, it is an excellent choice for anyone in need of a reliable and long-lasting wire solution.

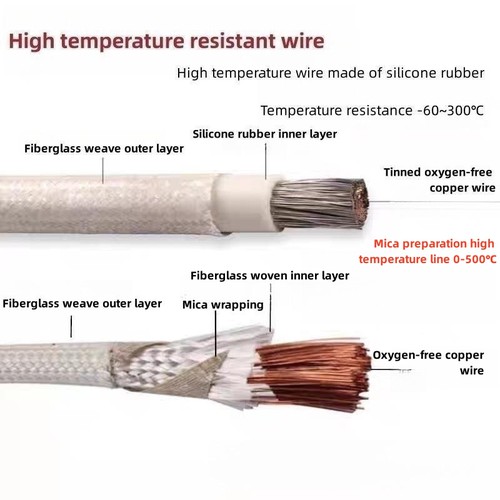

Conductor: UL 3122 Fiberglass Braided Wire typically features a stranded or solid copper

conductor. The copper conductor ensures efficient transmission of electricity.

Insulation: The wire is insulated with a layer of high-quality fiberglass. This insulation provides excellent electrical insulation properties, even in high-temperature environments.

Braided Jacket: The wire is further protected by a braided fiberglass jacket. This jacket provides mechanical strength, abrasion resistance, and additional insulation against external factors.

Fiberglass Insulation:

High-Temperature Resistance: Fiberglass insulation offers exceptional resistance to high temperatures. It can withstand continuous operating temperatures of up to 200°C or higher, depending on the specific product specifications.

Electrical Insulation: The fiberglass insulation provides excellent electrical insulation properties, ensuring reliable performance and reducing the risk of electrical faults or breakdowns.

1.Thermal Stability: Fiberglass insulation maintains its structural integrity and performance characteristics even under prolonged exposure to high temperatures, making it suitable for demanding applications.

2.Mechanical Strength:

UL 3122 Fiberglass Braided Wire is designed to withstand mechanical stress and strain. The braided fiberglass jacket enhances the wire's mechanical strength and resistance to external forces.

The wire's construction provides robust protection against abrasion, impact, and other physical stresses that may occur during installation or operation.

Excellent Thermal Performance:

UL 3122 Fiberglass Braided Wire is specifically engineered for applications where high-temperature resistance is critical.

It exhibits low thermal conductivity, meaning it minimizes the transfer of heat between the wire and its surroundings.

The wire's thermal performance helps to prevent overheating, damage, or degradation of insulation in high-temperature environments.

Electrical Insulation:

UL 3122 Fiberglass Braided Wire offers excellent electrical insulation properties. It provides a high level of dielectric strength and insulation resistance, minimizing the risk of electrical leakage or short circuits.

The fiberglass insulation ensures reliable electrical performance, even in demanding conditions where electrical noise, interference, or voltage spikes may be present.

Products application

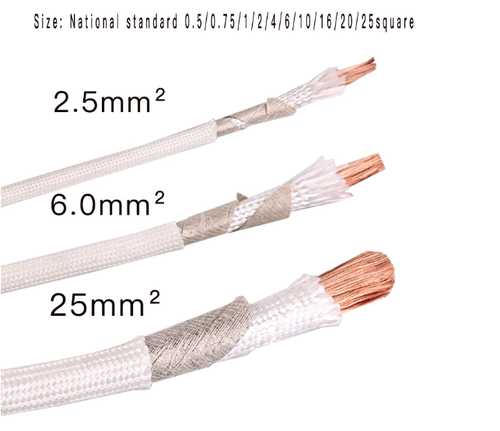

Mica Fiberglass Braided Fire resistant Wire

Specification

Name	Using temperature	Conductor material	Insulation material
GN 500	500C	Pure cooper wire	Fiberglass+mica tape+fiberglass
GN 600	600C	Nickel-plating cooper wire	Fiberglass+mica tape+fiberglass
GN800	800C	Pure nickel wire	Fiberglass+mica tape+fiberglass
GN 1000	1000C	High temperature pure nickel wire	Ceramic fiber+mica tape+ceramic fiber

UL 3122 Fiberglass Braided Wire finds application in various industries and environments that require high-temperature resistance and mechanical robustness. Some common application areas include:

*Industrial heating systems

*Electrical equipment and appliances

*Automotive wiring harnesses

*Aerospace and aviation industries

*Power generation and distribution

*Oil and gas exploration and production

*Military and defense sectors

Products parameters

Each Size Specification For Silicone fiber Glass UL3122 Wire

Conductor			Insulation			Unit length
Size	Construction	Diameter	Nominal Thickness	Braided Thickness	Over Diameter	(M)(Ft)
(AWG)	(No./mm)	(mm)	(mm)	0.225	(mm)	Meter
24	8*0.18	0.59	0.4		1.85	305
22	12*0.18	0.72	0.42		2	305
20	20*0.18	0.93	0.41		2.2	305
18	30*0.18	1.14	0.43		2.45	305
16	50*0.18	1.47	0.42		2.75	305
24	7*0.2	0.61	0.4		1.85	305
22	7*0.254	0.78	0.39		2	305
20	7*0.31	0.95	0.4		2.2	305
18	7*0.39	1.19	0.4		2.45	305
16	7*0.5	1.53	0.39		2.75	305
14	41*0.254	1.88	0.44		3.2	200
12	65*0.254	2.37	0.64		4.1	200
10	105*0.254	3.01	0.72		4.9	200

packing and shipping

Packing

^{Material:

Steel wooden drum (fumigation) Cable length in each drum:500m/1000m or as per actual cable length requirements.

Drum size:

As per cable length and container size

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}

Introduction:

UL 3122 Fiberglass Braided Wire is a type of high-temperature wire that is widely used in various industries requiring high heat-resistance. This product is

manufactured in China and is exported to merchants in different countries across the globe. The wire is made from braided fiberglass and is designed to withstand high temperature, making it ideal for use in harsh environments.

Features and Benefits:

1. High Temperature Resistance:

UL 3122 Fiberglass Braided Wire is designed to resist high temperatures. This wire is capable of withstanding a temperature range of -60°C to +450°C (-76°F to +842°F), making it suitable for use in environments with high temperatures.

2. Excellent Electrical Properties:

This wire has excellent electrical insulation properties and is designed to withstand high voltages. The wire has a high dielectric strength and low dielectric loss, making it ideal for use in electrical applications that require high-performance requirements.

3. Superior Flexibility:

The UL 3122 Fiberglass Braided Wire is highly flexible and can bend easily, making it easy to handle and install. The wire is resistant to mechanical stress and can withstand a high degree of wear and tear. It also has excellent resistance to corrosion and moisture.

4. Safe and Reliable:

This product meets the UL and RoHS safety standards, ensuring that it is safe and reliable to use in different applications. The wire is resistant to flame and moisture, making it ideal for use in harsh and hazardous environments.

Applications:

UL 3122 Fiberglass Braided Wire is widely used in various industries because of its exceptional properties. Some of the applications of this wire include:

1. Aerospace: This wire is used in the aerospace industry for wiring aircraft systems and engines. It is ideal for use in high-temperature environments.

2. Industrial: This product is used in industrial applications such as power generation, metal refining, and chemical processing. It is ideal for applications that require high temperature and chemical resistance.

3. Automotive: The wire is used in the automotive industry for wiring engines, transmission systems, and brakes. It is ideal for use in harsh environments where high temperature and chemical resistance are required.

4. Medical: This product is used in medical applications such as patient monitoring systems, surgical equipment, and medical imaging. It is ideal for use in high-temperature environments where sterilization is required.

Conclusion:

UL 3122 fiberglass braided wire is a high-temperature wire that is widely used in various industries because of its exceptional properties. This wire is capable of withstanding a wide range of temperatures and has excellent electrical insulation properties. It is highly flexible, making it easy to handle and install, and is resistant to mechanical stress and corrosion. The wire meets the UL and RoHS safety standards, ensuring that it is safe and reliable to use in different applications. Overall, UL 3122 fiberglass braided wire is an excellent choice for industries requiring high-temperature wire that is durable, flexible, and safe.
