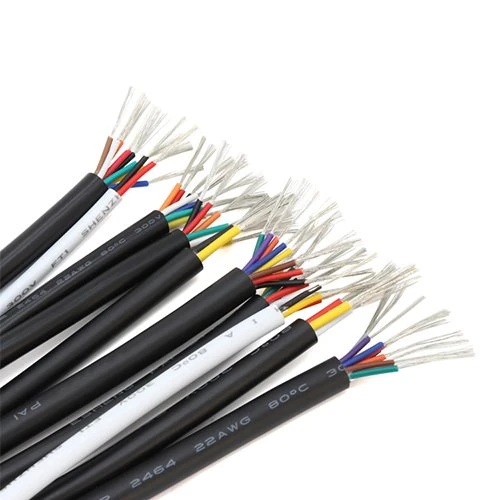

UL 2464 Hook Up Wire

Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of ul 2464 hook up wire in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.



UL 2464 Hook Up Wire used in various electrical and electronic applications. It is developed and maintained by Underwriters Laboratories (UL), a globally recognized testing and certification organization. UL 2464 specifies the construction and performance requirements for multi-conductor cables, commonly referred to as hook-up wires.

The UL 2464 standard covers cables with two or more conductors, typically insulated with PVC (Polyvinyl Chloride) or another suitable material. These cables are commonly used for internal wiring of appliances, electronic equipment, computers, communication systems, and other similar applications.





Place of Origin:	China
Model Number:	RVV
Application:	signal technology,measurement,control and intercom devices
Product name:	Equipment cable
MOQ:	3000 Meters
Type:	Special data cable
Conductor Material:	Tinned copper
Jacket:	PVC
Delivery time:	According to quantity

















The UL 2464 Hook Up Wire is a UL-rated wire that is used for electronic equipment. This wire is designed to be

strong, durable, and resistant to environmental factors such as oil, water, and UV light. As a result, it is the perfect choice for a wide range of applications.The wire is suitable for use in computers, medical equipment,

telecommunications, security systems, and much more.



UL 2464 Hook Up Wire has excellent electrical properties,which make it the ideal choice for transmitting signals.The wire's high electrical conductivity ensures that there is minimal energy loss, which is essential in applications where minimal power is required. The wire's insulation is designed to minimize signal distortion and interference.This feature helps to ensure that the signal quality remains high, which is important in applications such as medical equipment and telecommunications.





1.Construction:

*Conductors: UL 2464 Hook Up Wire typically consists of stranded or solid conductors. Stranded conductors are made up of multiple small wires twisted together for flexibility, while solid conductors are single, solid wires.

*Insulation: The conductors are insulated with a PVC (Polyvinyl chloride) jacket. PVC is a common material used for insulation due to its excellent electrical properties, durability, and cost-effectiveness.

2.Voltage Rating:

UL 2464 Hook Up Wire has a voltage rating of 300 volts. This means it is suitable for low to medium voltage applications.

3.Temperature Rating:

UL 2464 hook-up wire is designed to operate within a wide temperature range. The standard temperature rating for this wire is -20°C to 80°C (-4°F to 176°F), although variations with higher temperature ratings may also be available.

4.Shielding:

Some variants of UL 2464 Hook Up Wire may include shielding. Shielding can be in the form of aluminum foil or copper braid wrapped around the insulated conductors. Shielding helps to minimize electromagnetic interference (EMI) and ensures better signal integrity, making it suitable for applications where signal quality is critical.

5.Color Coding:

UL 2464 Hook Up Wire is available in various colors, following standard color coding schemes. Different colors help with easy identification and organization of wires in complex wiring systems.

6.Compliance:

UL 2464 Hook Up Wire meets the safety and performance requirements set by Underwriters Laboratories (UL). This certification ensures that the wire has undergone rigorous testing and conforms to industry standards for electrical safety and reliability.

UL 2464 Hook Up Wire finds widespread use in diverse applications, including internal wiring of computers, appliances, electronic devices, and control panels.

It can be used for signal transmission, power distribution, and control circuitry.

The wire's flexibility makes it easy to route and install in tight spaces.

Its insulation properties provide protection against electrical shorts, abrasion, and environmental factors.

Packing

^{Material:
Steel wooden drum (fumigation) Cable length in each drum:}

<sup>500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed</sup>

^{cable length quantity. Larger quantity, more discount benefit ready for you!}



our factory specializes in the production of high, medium and low voltage series

of wires and cables. The main products are PVC insulated power cables, fire-resistant cables,

flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage

coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables,

waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires,

railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc.,

more than 30 varieties, More than 3000 products of several specifications have been exported to

more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.

In summary, UL 2464 Hook Up Wire is a versatile and reliable wire used in various electrical and electronic applications. Its construction, insulation, voltage and temperature ratings, shielding (optional), color coding, and compliance with UL standards make it a popular choice for engineers and designers requiring dependable electrical connections.
