Flexible Rubber Welding Cable
Flexible welding cable is a type of cable specifically designed for welding equipment, with characteristics such as softness, tensile resistance, and torsion resistance, to meet the frequent movement and bending needs of cables during the welding process
Products Description
Conductor: Flexible Class 5 Copper Conductor
Insualtion: NBR rubber
Filler: polyester film
Products parameter
| 450V 750V Flexible Rubber Welding Cable | ||||||
|
Specifications |
Voltage: AC 200V~DC 400V |
|||||
|
Conductor Nominal Section (mm2) |
Number/Diameter of Core(mm) |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
Minimum insulation resistance |
Recommended value of carrying capacity |
Reference weight |
|
10 |
322/0.2 |
1.8 |
7.5 |
0.012 |
10 |
37 |
|
16 |
513/0.2 |
2.0 |
9.2 |
0.01 |
13 |
47 |
|
25 |
798/0.2 |
2.0 |
10.5 |
0.012 |
8 |
44 |
|
35 |
1121/0.2 |
2.0 |
11.5 |
0.01 |
10 |
58 |
|
50 |
1596/0.2 |
2.2 |
13.5 |
0.011 |
13 |
58 |
|
70 |
2214/0.2 |
2.4 |
15 |
0.01 |
16 |
66 |
|
95 |
2997/0.2 |
2.6 |
17 |
0.01 |
20 |
89 |
|
120 |
1702/0.3 |
2.8 |
19 |
0.009 |
27 |
137 |
|
150 |
2135/0.3 |
3.0 |
21 |
0.007 |
38 |
205 |
working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H03RN-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 65℃
use of the product

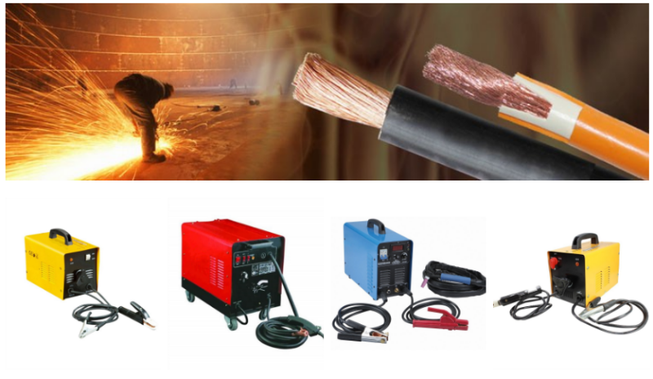

The 450V/750V Flexible Rubber Welding Cable serves critical functions in welding operations:
- Power Transmission: The cable efficiently carries electrical power from the welding machine to the welding equipment,
- enabling the welding process with a reliable and consistent power supply.
- Flexibility: Its flexible design allows for easy handling, maneuverability, and adaptation to different welding positions and
- environments, enhancing the efficiency and quality of welding operations.
- Durability: The cable's robust construction and resistance to heat, oil, and abrasion ensure its longevity and performance
- even in challenging welding conditions.
charateristics
1. Rated voltage :300/300(h03rn-f type),300/500(h05rn-f type),450/750V(h07rn-f type)
2. The long-term working temperature of conductor should be no longer than 65°C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Products procedure
Products packing and transportation

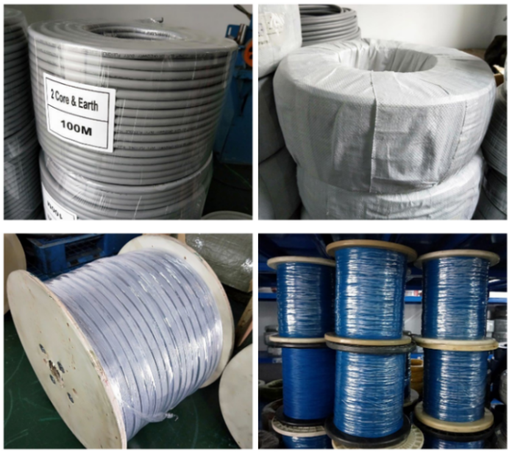

The 450V/750V Flexible Rubber Welding Cable is carefully packaged to protect it during transportation. Each cable is coiled, wrapped,
and labeled for easy identification. We work with trusted logistics partners to ensure safe and timely delivery of our products to customers' specified locations.
relevant FAQ
Q1: Is the cable suitable for both manual and automated welding?
A1: Yes, this cable is suitable for various welding processes, including manual welding and automated welding systems.
Q2: Can the cable withstand high temperatures generated during welding?
A2: Absolutely, the cable is designed with heat-resistant materials to withstand the elevated temperatures encountered during welding operations.
Q3: Can the cable be customized for specific welding machines and project requirements?
A3: Yes, we offer customization options for voltage rating, current rating, and cable length to meet the specific needs of different welding equipment and applications.
contact us
Choose Jinshenghong Cable for a high-quality 450V 750V Flexible Rubber Welding Cable and reliable solutions for welding operations.
Contact us today to discuss your project requirements and request a quotation.
