Products Description

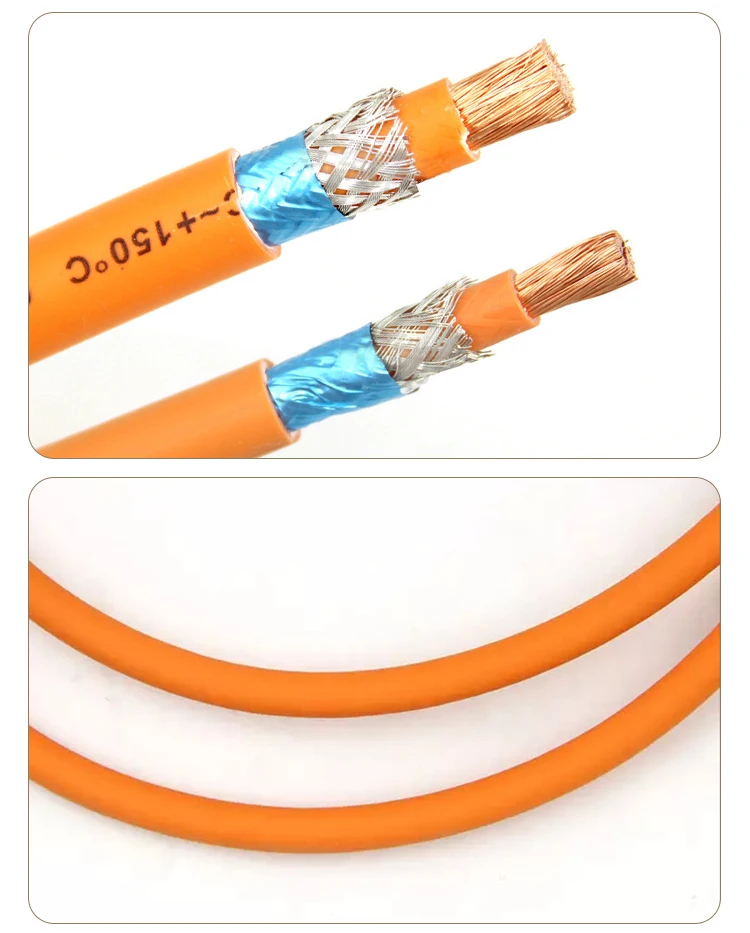

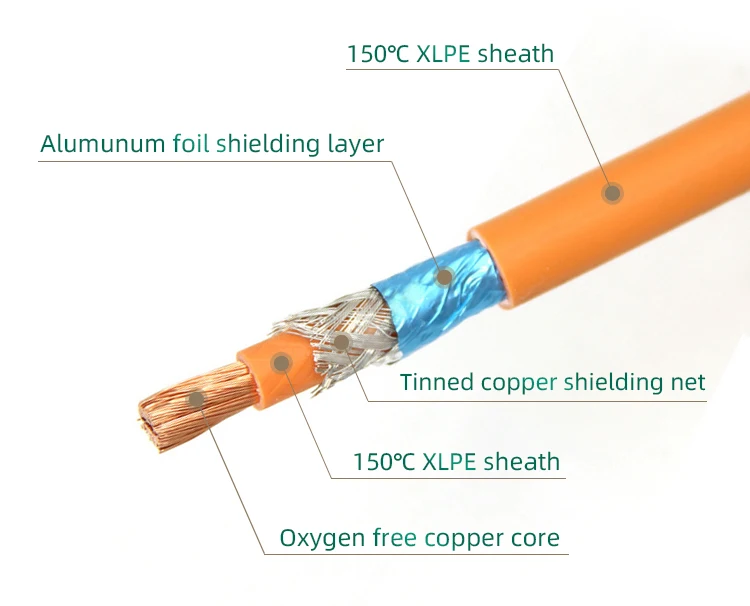

The Automotive Shielded EV Cable Construction:
1.Conductor: The cable contains multiple stranded copper conductors, which provide low electrical resistance and optimal current-carrying capacity.
2.Insulation: Each conductor is individually insulated with a high-quality insulating material, such as XLPE (Cross-linked Polyethylene), to prevent electrical leakage and short circuits.
3.Shielding: The cable features an additional shielding layer made of conductive material, like aluminum or copper foil, which surrounds the insulated conductors. This shielding prevents electromagnetic interference (EMI) from both external sources and the cables themselves, ensuring signal integrity.
Products parameter
|
High voltage cables for road vehicles（QC/T 1037-2016 )
|
|
|
Construction
|
Features
|
|
Conductor
|
Rated temperature ：-40℃～+(125℃, 150℃)
|
|
Material: Bare Copper
|
Rated VoltageAC ：600V/DC 900V;AC 1000V/DC 1500V
|
|
Insulation
|
Short-term Aging：240h,Comply with QC/T 1037
|
|
Material: XLPE/XLPO
|
Long-term Aging： 3000h,Comply with QC/T 1037
|
|
Color：Orange
|
Flame Test： Comply With QC/T 1037
|
|
Shielded
|
Min ： Bending Radius: 4*OD@OD﹤15mm ; 6*OD@OD≧15mm
|
|
Material:Tinned Copper
|
Dielectric Voltage：5kVac/5min. No Breakdown
|
|
Sheath
|
Oil Resistance：Comply With QC/T 1037
|
|
Material:XLPE/XLPO
|
Anti-tear Performance ：>20N/mm
|
|
Color:Orange
|
Environmental Requirements ：Compliant with RoHS and REACH
|
|
AC 1000V/DC 1500V (EV shielded high-voltage cable) |
|||||
|
Product range |
Specifications |
Conductor stranding OD |
Conductor resistance |
Reference allowable current |
overall diameter |
|
QZJP2-C （Rated temperature：-40℃～+125℃)
QZJP2-D （Rated temperature：-40℃～+150℃) |
10mm2 |
4.5 |
1.82 |
70 |
9.5 |
|
16mm2 |
5.6 |
1.16 |
95 |
11.3 |
|
|
25mm2 |
7.2 |
0.743 |
130 |
13.5 |
|
|
35mm2 |
8.3 |
0.527 |
160 |
14.5 |
|
|
50mm2 |
10.1 |
0.368 |
210 |
17 |
|
|
70mm2 |
12.1 |
0.259 |
260 |
19 |
|
|
95mm2 |
14.5 |
0.196 |
320 |
21.6 |
|
|
120mm2 |
15.9 |
0.153 |
370 |
23 |
|
Products application

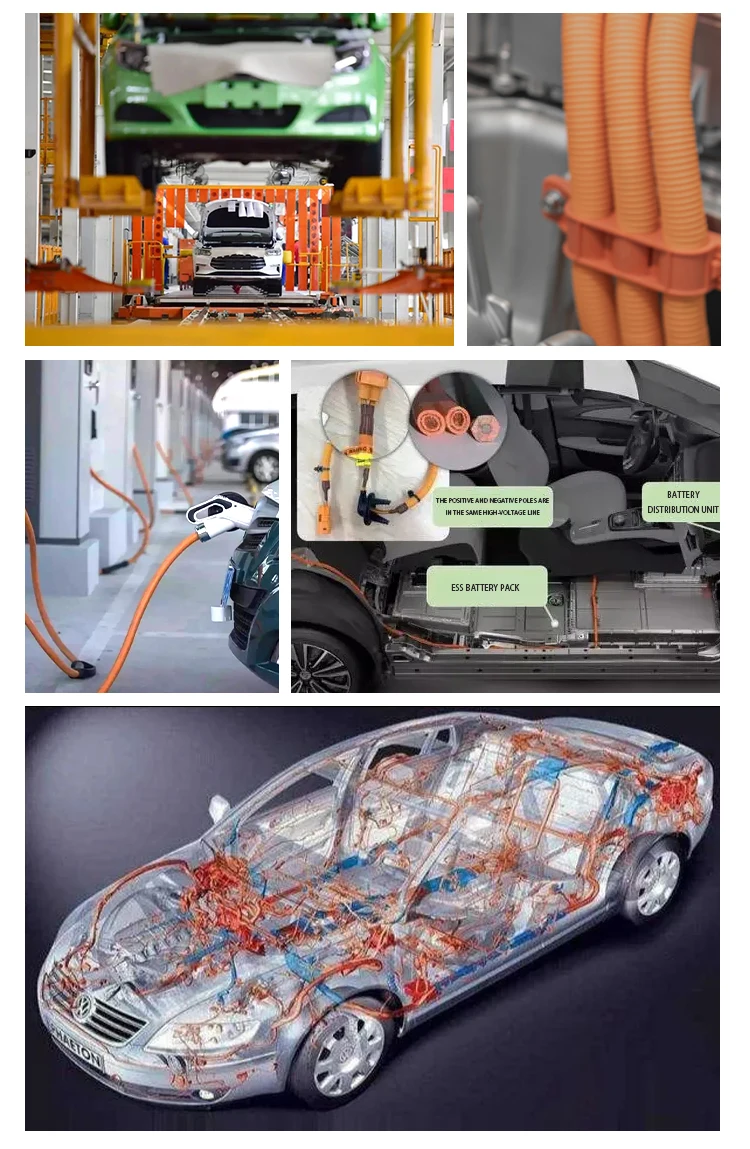

Usage: Automotive Shielded EV Cable are primarily used for high-voltage power transmission in electric vehicles.
They serve as a link between the EV's battery pack and various components such as the electric motor, charger, and auxiliary systems.
These cables can carry substantial currents safely and efficiently, allowing the EV to function properly.
Products packaging and transportation

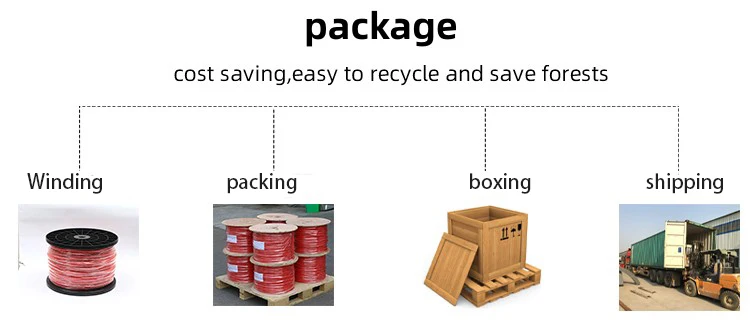

Automotive Shielded EV Cable is carefully packaged to protect it during transportation. Each cable is coiled, wrapped, and labeled for easy identification.
We work with trusted logistics partners to ensure safe and timely delivery of our products to customers' specified locations.
relevant FAQ
Q1: Can the cable be used in all types of electric vehicles?
A1: Yes, the cable is designed for use in various types of electric vehicles, including hybrid electric vehicles (HEVs), plug-in hybrid electric vehicles (PHEVs), and battery electric vehicles (BEVs).
Q2: Does the cable provide electromagnetic interference (EMI) shielding?
A2: Yes, the cable is equipped with shielding materials, such as copper foil or braided shield, to minimize electromagnetic interference and ensure reliable signal transmission.
Q3: Is the cable resistant to oil and weather conditions?
A3: Yes, the cable's jacket material is specifically designed to be oil-resistant and weather-resistant, providing protection against harsh automotive environments.
contact us
Choose Jinshenghong Cable for high-quality Automotive Shielded EV Cable and reliable solutions for your electric vehicle applications.
Contact us today to discuss your project requirements and request a quotation.
