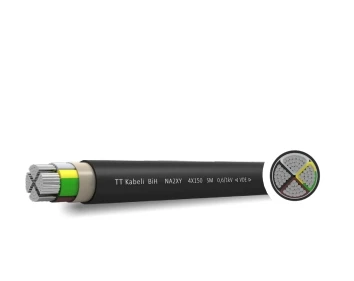

Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of na2xy cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.

Products applitation

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

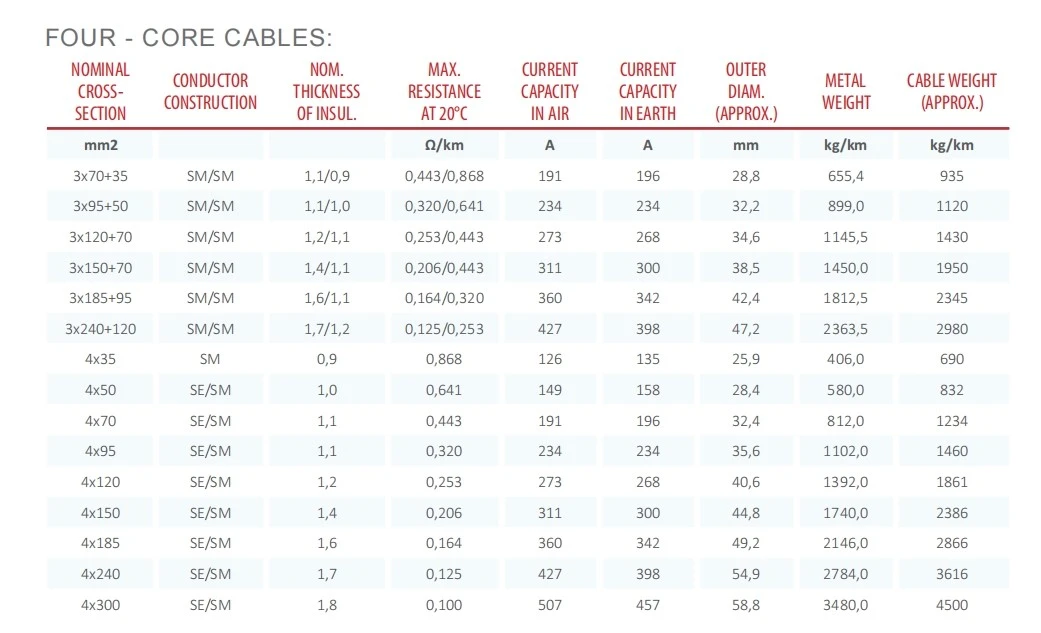

TECHNICAL CHARACTERISTICS:

CPR class: Eca

Test voltage: 4 kV

Rated voltage: 0,6/1 kV

Bending radius (min): single-core - 15D;

multicore - 12D

Min. laying temperature: -5°C

Max. conductor temperature: 90°C

Max. short-circuit temperature: 250°C

Conductors: Al, class 1 (RE/SE) or class 2

(RM/SM) according to EN 60228

Insulation: XLPE compound DIX 3

Bedding: Extruded elastomere or plastomere

compound or plastic tape

Sheath: XLPE compound DMV 6

Characteristic:

Maximum temperature during cable operation: + 90 °C

Minimum ambient temperature for permanently laid cables: -30 °C

The minimum ambient temperature for cable laying: -5 °C

Maximum core temperature during short circuit: + 250 °C

Minimum bending radius: 15 x D for single-core cables, 12 x D for multi-core cables, D - cable diameter

Maximum allowable tensile stresses: 30 N / mm

Test voltage AC 50Hz 5min: 4kV

Standard packaging: 1000m on drums. It is possible to offer other lengths and types of packaging

Reaction to fire:

Flame spread resistance: IEC 60332-1-2

CPR - reaction to fire class (according to EN 50575): Eca
