Products Description
Structure Composition
Conductor: A DIN VDE 0295 standard class 5 flexible multi-strand tinned copper conductor is adopted. This kind of conductor has good flexibility and electrical conductivity, and can still maintain stable current transmission under the circumstances of frequent bending and moving, reducing the occurrence of power failures caused by conductor breakage or damage.
Insulation: The insulation layer is made of Type 3GI3 heat-resistant EPR, which has excellent heat resistance and insulation performance, enabling it to work normally in high-temperature environments and effectively preventing current leakage, thus ensuring the safety and stability of power transmission.
Inner Sheath: The inner sheath is made of materials such as SR/SBR/PCP/CR type GM1b/5GM3. These materials possess good mechanical properties and environmental resistance, and can provide effective protection for the conductors and insulation layers inside the cable, enhancing the overall durability of the cable.
Outer Sheath: The outer sheath is made of chlorinated rubber PCP/CR type 5GM5, which has the characteristics of abrasion resistance, tear resistance, oil resistance, and flame retardancy. It can resist external mechanical abrasion, oil erosion, and the threat of flames, greatly improving the service life and safety of the cable in harsh industrial environments.
Standard Specifications
It is manufactured in accordance with the VDE0250 Part 812 standard, ensuring that various performance indicators of the cable meet the requirements of European standards, thus achieving a high level in terms of safety and reliability.
Performance Characteristics
Oil and Abrasion Resistance: It can withstand a certain degree of oil and chemical substance erosion, and also has a high abrasion resistance, enabling it to be used for a long time in harsh industrial environments.
Good Flame Retardancy: It has good flame retardant performance, capable of preventing the spread of flames in case of a fire, reducing the risk of fire accidents and ensuring the safety of personnel and equipment.
High Mechanical Strength: It has a relatively high tensile strength, able to withstand a certain pulling force, adapting to the tensile stress exerted on the cable by the equipment during movement.
Specification Sizes
This cable is available in multiple core numbers and nominal cross-sectional areas. Different specifications correspond to different minimum outer diameters, maximum outer diameters, and nominal weights to meet the power transmission requirements of different equipment and scenarios. For example, there are various specifications such as 1×16mm², 1×25mm², 1×35mm², etc., and the core numbers cover different choices from single-core to multi-core.
Color Identification
The conventional color of its outer sheath is black. However, for the core wire identification, colors will be used to distinguish within 5 cores, and for 6 cores and above, black core wires with white numbers will be used for distinction. Some products can also be equipped with a green/yellow ground wire for easy identification and distinction during installation and maintenance.
Performance Characteristics
Oil and Abrasion Resistance: It can withstand a certain degree of oil and chemical substance erosion, and also has a high abrasion resistance, enabling it to be used for a long time in harsh industrial environments.
Good Flame Retardancy: It has good flame retardant performance, capable of preventing the spread of flames in case of a fire, reducing the risk of fire accidents and ensuring the safety of personnel and equipment.
High Mechanical Strength: It has a relatively high tensile strength, able to withstand a certain pulling force, adapting to the tensile stress exerted on the cable by the equipment during movement.
Specification Sizes
This cable is available in multiple core numbers and nominal cross-sectional areas. Different specifications correspond to different minimum outer diameters, maximum outer diameters, and nominal weights to meet the power transmission requirements of different equipment and scenarios. For example, there are various specifications such as 1×16mm², 1×25mm², 1×35mm², etc., and the core numbers cover different choices from single-core to multi-core.
Color Identification
The conventional color of its outer sheath is black. However, for the core wire identification, colors will be used to distinguish within 5 cores, and for 6 cores and above, black core wires with white numbers will be used for distinction. Some products can also be equipped with a green/yellow ground wire for easy identification and distinction during installation and maintenance.

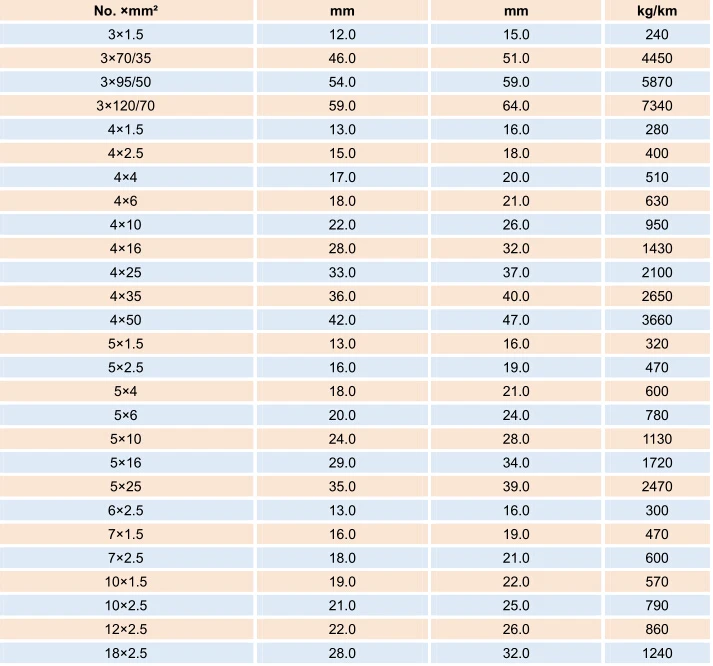

Products parameter
Application
1.Wide Range of Applicable Environments: It can be used in dry and humid environments, outdoor areas, and areas with explosion hazards, especially suitable for harsh industrial environments such as coal mines, quarries, and construction sites.
2.Connection of Equipment with High Mechanical Loads: It is mainly used to connect mobile mechanical equipment with high mechanical loads, such as coal mining machines, conveyor belts and other equipment in mines, capable of meeting the power transmission requirements of the equipment during frequent movements.
