The conductor is made of tin plated oxygen free copper, with low resistance, stable transmission, low heat generation, and oxidation resistance
The insulation sheath is made of cross-linked low smoke and halogen-free materials. After irradiation, the product can be used in a humid and hot environment between -40 ℃ and 150 ℃, with corrosion resistance, flame retardancy, ozone resistance, sunlight resistance, and UV resistance
Products Description
|
Model
|
Specifications(mm²)
|
Conductor Specifications (mm)
|
Outer Diameter of Finished Product(mm)
|
Standard weight 100 meters(kg)
|
|

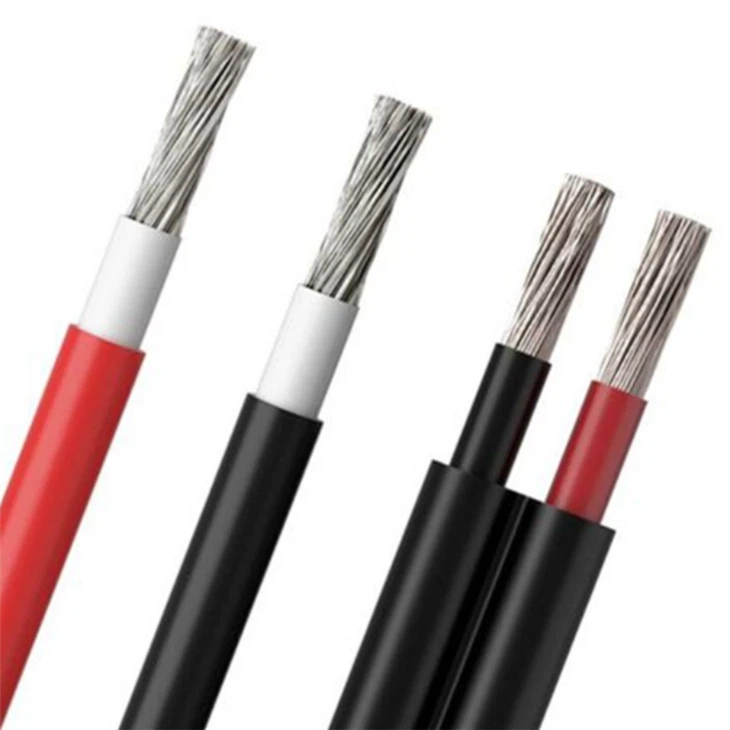

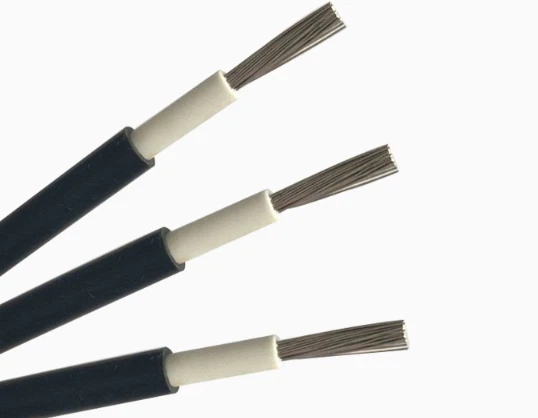

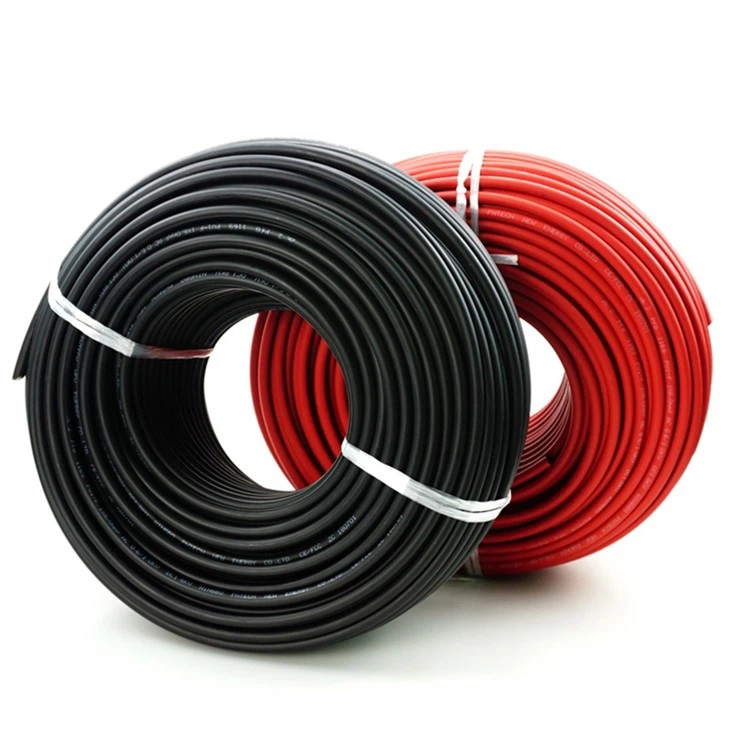

PV1-F solar photovoltaic line
|
1*1.5
|
40/0.2TS
|
5
|
3.7
|
|
1*2.5
|
79/0.2TS
|
5.5
|
4.97
|
|
|
1*4.0
|
128/0.2TS
|
6
|
6.73
|
|
|
1*6.0
|
191/0.2TS
|
6.8
|
9.25
|
|
|
1*10.0
|
317/0.2TS
|
8.2
|
14.46
|
|
|
1*16.0
|
500/0.2TS
|
9.6
|
21.46
|
|
|
2*2.5
|
79/0.2TS
|
5.5*11.2
|
9.1
|
|
|
2*4.0
|
128/0.2TS
|
6*12.2
|
12.53
|
|
|
2*6.0
|
191/0.2TS
|
6.8*13.8
|
17.35
|
