Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of 4mm 6mm dc solar pv cable solar cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
4mm 6mm dc Solar Pv Cable solar cable is a type of electrical cable designed for solar power systems. It consists of tinned copper conductors that offer excellent conductivity and corrosion resistance. The conductors are coated with a layer of tin for enhanced durability. The cable carries direct current (DC) and connects solar panels to other components. It has low resistance to minimize power loss and is insulated with materials like XLPE and EPR for electrical insulation, thermal resistance, and UV protection. The cable complies with industry standards and certifications for safety and quality assurance.
|
Parameter |
Description |
|
Material |
Tinned copper conductors |
|
Voltage |
AC 600/1000V DC 1000/1800V |
| Temperature | -45℃-120℃ |
| Max. Temperature at Conductor | 120℃ |
| Size | 1.5-300mm2 |
|
Color |
Black/Red(support customized) |
|
Insulation Material |
XLPO/XLPE |
|
Jacket |
XLPO/XLPE/PE/PVC |
| Core | 1-2core |
| Supply Ability | 3000000meters per month |
| Certification | TUV/CE/ROHS/VDE/UL |
| Application | Power Station, Solar Power System |
Characteristics of photovoltaic lines
Jsh Photovoltaic Cable Wholesale, OEM and ODM Customization

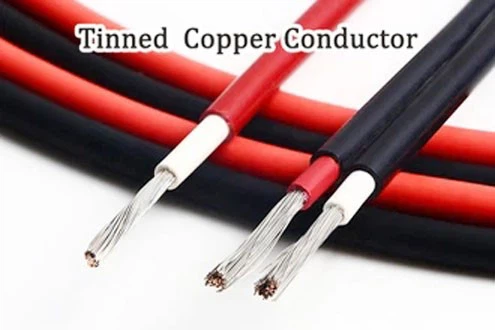

Tin plated copper photovoltaic wire
Features: It has high conductivity, corrosion resistance and aging resistance, and can operate stably in outdoor environment for a long time.
Characteristics of photovoltaic lines

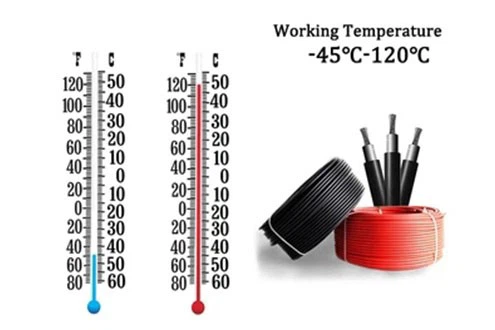

Weather resistance: capable of long-term stable operation in outdoor environments ranging from -45 ° C to 120 ° C.
UV resistance: Long term exposure to outdoor environments without deformation, aging, or breakage.
Corrosion resistance: Used in harsh environments such as acid rain and salt spray, it is not easily corroded or damaged.
Safe and reliable: Through multiple rigorous tests and certifications.

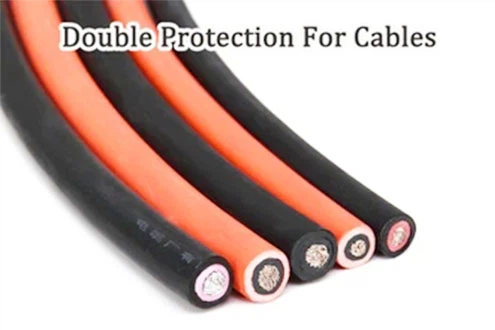

Double Protection For Cables
Insulation layer:
Material: Made of polyolefin material.
Characteristics: It has excellent insulation performance, voltage resistance, high temperature resistance, halogen-free, flame retardant and other characteristics.
Outer layer:
Material: Made of materials with corrosion resistance and UV protection properties.
Characteristic: It can effectively resist the erosion of external environment and chemical substances. The outer layer also has good wear resistance, high temperature resistance, and low temperature resistance.
Products parameter
| Single core solar photovoltaic power cable | |||||
| conductor cross-section(mm²) | conductor structure(n/mm) | Stranded outer diameter(mm) | Insul.Thick.(mm) | Conductor resistance(Ω/km) | Ampacity60°C(A) |
| 1.5 | 30/0.25 | 1.58 | 4.9 | 13.3 | 30 |
| 2.5 | 49/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 4 | 56/0.30 | 2.6 | 6.1 | 4.95 | 55 |
| 6 | 84/0.30 | 3.42 | 7.2 | 3.3 | 70 |
| 10 | 84/0.40 | 4.56 | 9 | 1.91 | 98 |
| 16 | 128/0.40 | 5.6 | 10.2 | 1.21 | 132 |
| 25 | 192/0.40 | 6.95 | 12 | 0.78 | 176 |
| 35 | 276/0.40 | 8.74 | 13.8 | 0.554 | 218 |
| Double core solar photovoltaic power cable | |||||
| conductor cross-section(mm²) | conductor structure(n/mm) | Stranded outer diameter(mm) | Insul.Thick.(mm) | Conductor resistance(Ω/km) | Ampacity60°C(A) |
| 2/1.2 | 30/0.25 | 0.7 | 5.00*10.30 | 13.7 | 30 |
| 2*2.5 | 49/0.25 | 0.7 | 5.20*10.80 | 8.21 | 41 |
| 2*4.0 | 56/0.285 | 0.7 | 5.50*11.20 | 5.09 | 55 |
| 2*6.0 | 84/0.285 | 0.7 | 6.20*12.60 | 3.39 | 70 |
| 2*10.0 | 84/0.40 | 0.7 | 7.50*15.20 | 1.95 | 98 |
| 2*16.0 | 128/0.4 | 0.7 | 9.60*19.70 | 1.24 | 132 |
Application range
4mm 6mm dc Solar Pv Cable solar cable has various applications within the solar energy sector. Here are some key applications:
1.Solar Panel Wiring: The cable is used to connect solar panels together in series or parallel configurations, allowing the flow of DC current between them.
2.Connection to Inverters: It serves as the conductor that carries the DC power generated by solar panels to the inverter. The inverter then converts the DC power into AC power for use in homes or businesses.
3.Battery Connections: The tinned copper cable is also employed to connect solar panels to batteries in off-grid or hybrid solar systems. This facilitates the charging and discharging of batteries, storing excess energy for later use.
4.Grounding Systems: In solar installations, the tinned copper cable is utilized in grounding systems to create a safe path for electrical discharge and protection against potential electrical faults.
5.Solar Power Distribution: The cable is part of the electrical wiring system that distributes solar power from the inverter to various loads and electrical devices within a building or facility.
6.Solar Street Lighting: Tinned copper DC solar cable is used in solar street lighting systems to connect the solar panel, battery, and LED lights, enabling the distribution of solar energy for lighting purposes.
In summary, tinned copper DC solar cables find application in solar panel wiring, connecting to inverters, battery connections, grounding systems, power distribution, and solar street lighting systems. They play a crucial role in facilitating the efficient and safe transmission of DC power within solar energy installations.
Our certificates
A complete set of certificates is a reflection of our strength
packing and shipping
Wooden Drum
Every Shipping way is supported
The 4mm 6mm dc Solar Pv Cable solar cable is carefully packaged to ensure its safe transportation and delivery. Each reel or coil is securely wrapped to protect the cable from damage during transit. We also provide labeling and documentation for easy identification and handling. Our logistics team works closely with reliable shipping partners to ensure timely and efficient delivery to customers' specified locations.
Our advantage
Application: Our cables have been extensively used in municipal, electric power, water conservancy, steel, coal, petroleum, chemical, construction, subway, high-speed rail, airport, and other fields
Advanced Equipment and Reliable Technology: We employ cutting-edge equipment and reliable technology to ensure the manufacturing of superior products.
Customer Satisfaction: Our excellent management practices, along with guaranteed quality and reliable technical support, provide customers with reliable products and satisfactory services.
Extensive Market Reach: Our products have been distributed across more than 30 provinces and regions in China and exported to over 20 countries, including Russia, Spain, and the United States
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples of DC solar cable tinned copper from you?
A2: Yes! You are welcome to place sample order to test our superior quality and services.
Q3: What is your Warranty?
A3: All the products will have 12 months Warranty.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for
bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What's the leading time? (How long do you need to prepare my goods? )
A7: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
