Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of ip67 waterproof 30a dc 1000v solar cable mc4 connector in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
Products Description
Highlights at a glance
Rated Current 30A: Supports high current for reliable power transfer.
IP67 Protection: Dustproof and waterproof, ideal for outdoor use.
Copper Silver Plated Contacts: Ensures low resistance and durability.
Wide Compatibility: Suitable for 2.5mm²/4mm²/6mm² cables.
Snap-in Design: Easy installation with no tools required.
Products Detail
|
ltem |
Solar Connector IP67 Waterproof 30A 1000V DC Male & Female PV Solar Panel Cable Connectors in a Set Competitive price |
|
Model Number |
Solar |
|
Type |
ADAPTER |
|
Application |
Solar Panel |
|
Gender |
Male + Female + 2 Terminals |
|
Rated current |
30A (2.5-4.0mm2) |
|
Rated Voltage |
DC 1000V |
|
Connector contact resistance |
≤0.5mΩ |
|
Degree of waterproof |
IP67 |
|
Flammability rating |
UL94-V0 |
|
Suitable for |
2.5m㎡-- 6m㎡/ 14AWG -- 10AWG |
|
Temperature Range |
-40 ℃ ~ +125 ℃ |
Products Description
Solar

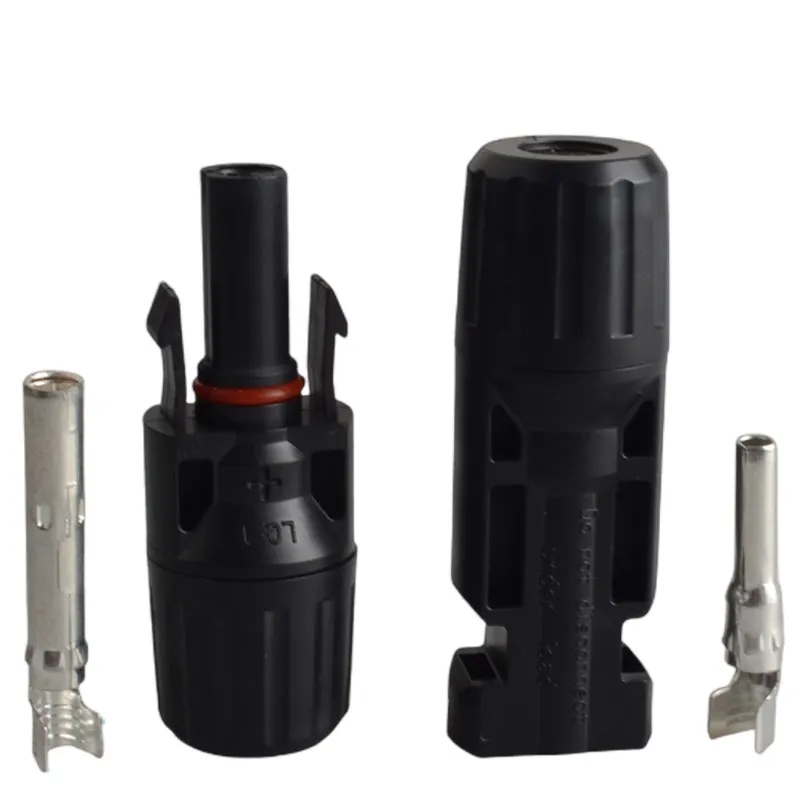

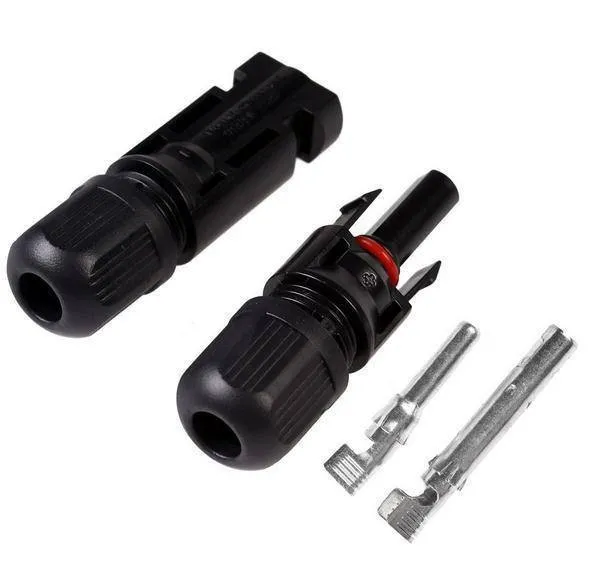

* 【Solar Connectors】Made of PPO + PA material,conductor pin is tinned Copper.After crimping the conductor to the cable, ensure a firm connection and perfect operation under heavy load. *【Compatible Cable】Compatible with PV cables with different insulation diameters (2.5m㎡-- 6m㎡/14AWG -- 10AWG).
*【High Carrying Capacity】1000V DC rated voltage,30A rated current and IP67 water proof level.With water & dust proof is safe for electrical connection.
*【Quick Install】Without extra instrument for the removal of plugs and removal will not cause any harm to plugs.
*【IP67 Waterproof】The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.

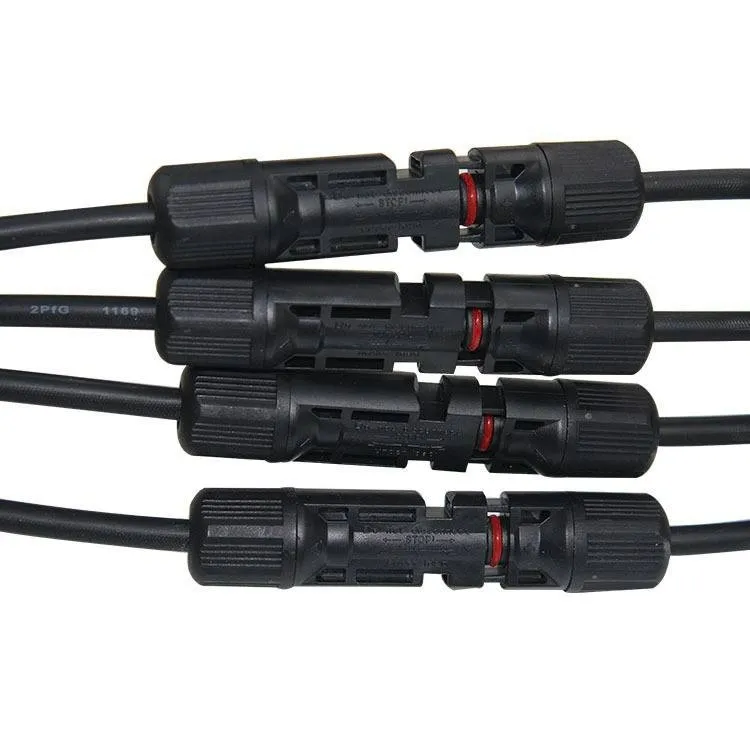

*【Plug and play】Connection - putting the male and female connectors facing each other and pushing in. Separation - pressing the two sides of the built-in lock and pulling the male and female connector.
*【Fully adapted】The included spanners are fully adaptable to the connectors and easily tighten the connectors. Simple, quick and safe effective assembly.
Products advantage
IP67 WATERPROOF
Products Description
Residential Solar Systems: Household rooftop solar power generation, small off-grid/on-grid PV systems
Commercial PV Projects: Factory rooftop power stations, industrial and commercial distributed solar systems
Utility-Scale Power Stations: Large ground photovoltaic power plants, agricultural and solar complementary power stations
New Energy Storage Systems: PV energy storage integrated systems, solar street lights, portable solar power supplies
Special Outdoor PV Equipment: Photovoltaic power supply systems for communication base stations, monitoring equipment and outdoor facilities
FAQ
1.Q: Could I put my own logo on the products?
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
