Basic information
product description
The power artery of rail transit - TVVB high flexibility cable 🚇⚡

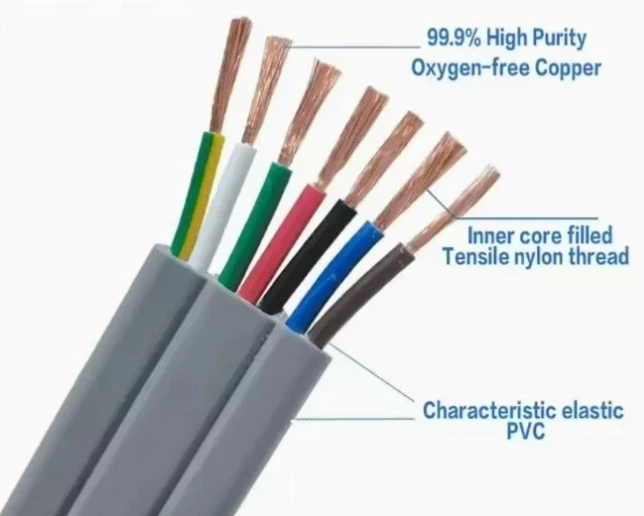

Are you still troubled by frequent cable breakage caused by bending? TVVB elevator and rail transit dedicated cables adopt oxygen free copper core and double-layer elastic sheath design, achieving industry benchmark performance:

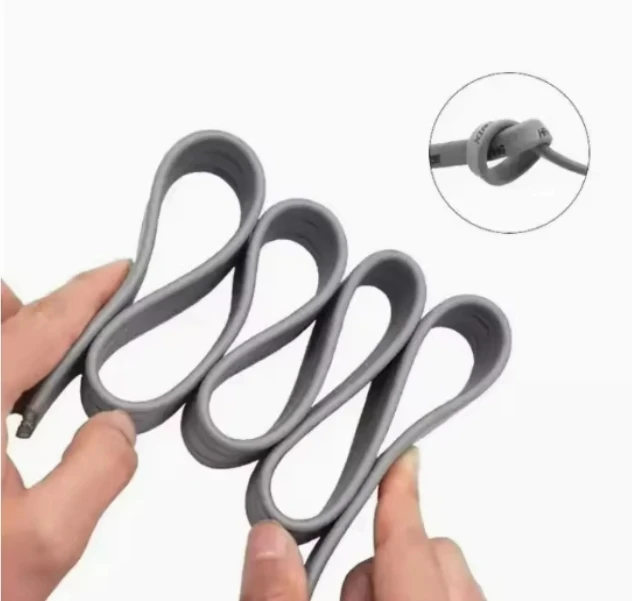

✅ Super flexibility - able to withstand>5 million bending cycles without interruption (in accordance with GB/T 5023 standard);

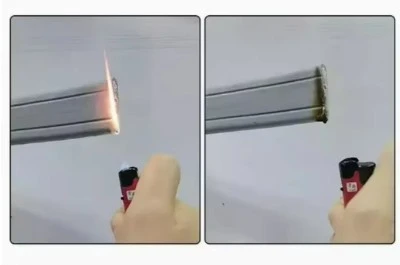

✅ Flame retardant is safer - according to the IEC 60332-3 vertical combustion test, the flame spread is ≤ 1.5 meters;
✅ Anti interference expert - Tin plated copper wire braided shielding layer, signal transmission interference attenuation<0.1dB!
Applicable scenarios: Elevator accompanying cables/subway vehicle power supply/port crane - choose TVVB to make the power smooth like silk and reliable like steel in dynamic scenarios!
PRODUCT MODEL
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product characteristics
1.Conductor : Fine Stranded Bare Copper Wire (acc.to VDE0295 Class 5)
2.Insulation : Special PVC (Polyvinyl Chloride)
3.Color Available:Yellow ,orange,white ,black,yellow and green
black with white digital coding or white with black digital coding
4.Load-bearing material:High-strength galvanized steel wire rope(Optional)
5.Sheath:Special PVC (Polyvinyl Chloride)
Flexible, cold-resistant, wear-resistant and oil-resistant
6.Color:Grey ,Black ,Orange ,Blue
Standard:
IEC60227-6 ,EN50214,GB5023.6
Technial:
Rated Voltage:300V/500V (0.75mm2 to 1.0mm2)
450V/750V (1.5mm2 to 2.5mm2)
Rated Temperature:-15°C to 70°C

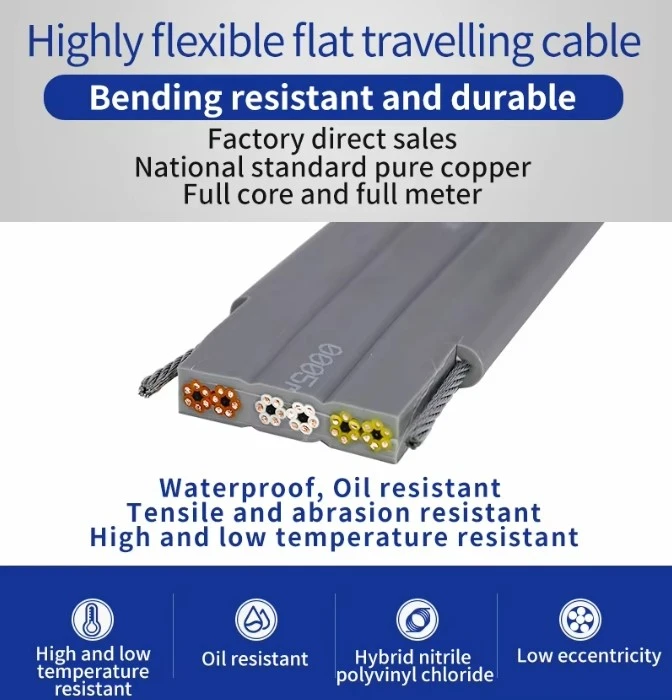

1. Flat Traveling Cable that inner core if parallel array,
when the suspension length more 35meters and the lift speed more 1.6m/s ,that should use load-bearing material :High-strength galvanized steel wire rope

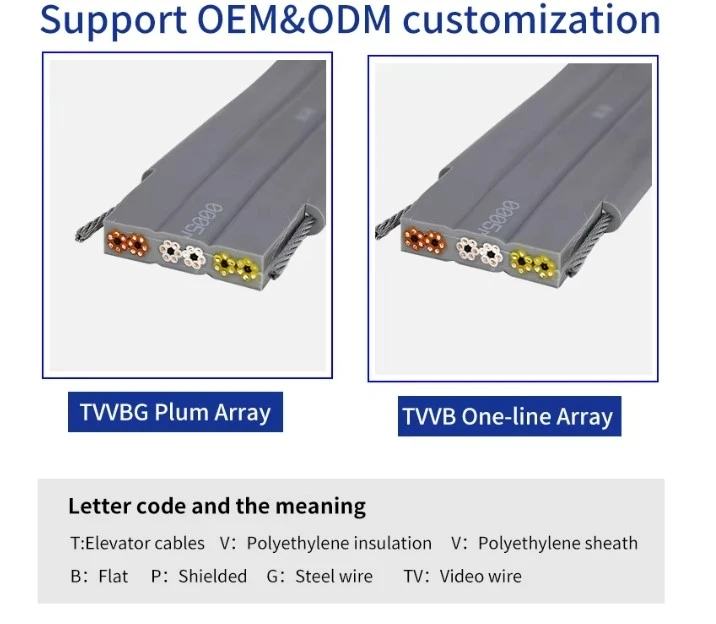

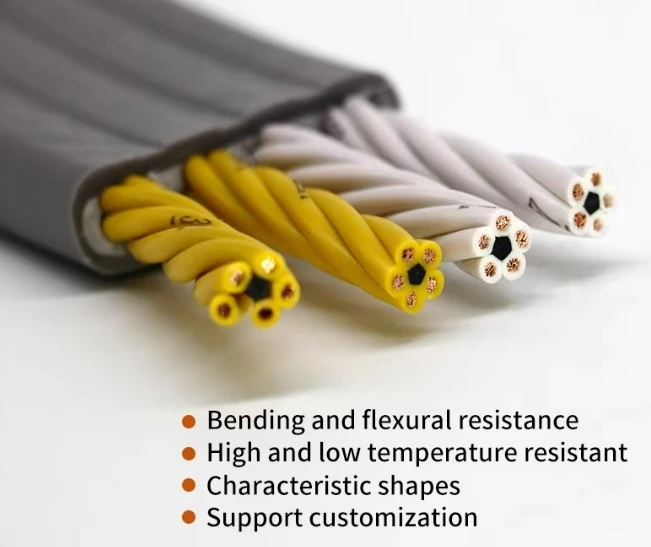

2. Flat Traveling Cable that inner core if Plum shape ,
when the suspension length more 75meters and the lift speed more 4m/s,that should use load-bearing material :High-strength galvanized steel wire rope
shanghai
Product detailed parameters
|
Nominal cross section |
Overall diameter |
Weight approx |
Con. DCR@20℃ |
|
mm2 |
mm |
kg/km |
Ω/km |
|
5x1.5 |
10.9 |
200 |
12.1 |
|
5x2.5 |
12.5 |
280 |
7.41 |
|
5x4 |
14.1 |
395 |
4.61 |
|
5x6 |
15.5 |
520 |
3.08 |
|
5x10 |
20.5 |
860 |
1.83 |
Products Description
APPLICATION SCENARIOS
Power supply for industrial mobile devices
Crane machinery
Crane/overhead crane: TVVBG type (with built-in tensile steel wire) supports large-span movement, with a bending radius of ≥ 6 times the width of the short side
Longmen crane: 24 core composite cable synchronously transmits power and control signals (such as 12 × 2.5mm ² power supply+12 × 0.5mm ² sensor)
Automated production line
Wiring of robotic arm: Flexible oxygen free copper conductor can withstand more than 1 million bends
Oil resistant scenario: NBR sheath resists hydraulic oil erosion (suitable for casting workshops)
Product customization
