Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of hya type communication cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
Products Description
Conductor:High-purity oxygen-free copper wires are used as conductors, typically in single or multi-strand twisted configurations.
Insulation Layer:High-density polyethylene (HDPE) is used as the insulation material, providing excellent insulation performance and abrasion resistance.
Pair Twisting:Each pair of conductors is twisted together to reduce electromagnetic interference and improve transmission quality.
Aluminum-Plastic Composite Sheath:The outer layer features an aluminum-plastic composite material as the sheath, offering good shielding performance to effectively prevent external electromagnetic interference and enhance the cable's mechanical strength.
Excellent Transmission Performance:High-purity copper conductors and high-density polyethylene insulation ensure high signal transmission quality with minimal attenuation.
Strong Anti-Interference Capability:The aluminum-plastic composite sheath provides effective shielding against external electromagnetic interference.
Stable Structure:The twisted pair configuration reduces mutual electromagnetic interference, ensuring stable signal transmission.
High Durability:Polyethylene insulation and aluminum-plastic sheath provide good wear resistance and aging resistance, suitable for various environmental conditions.
Applications

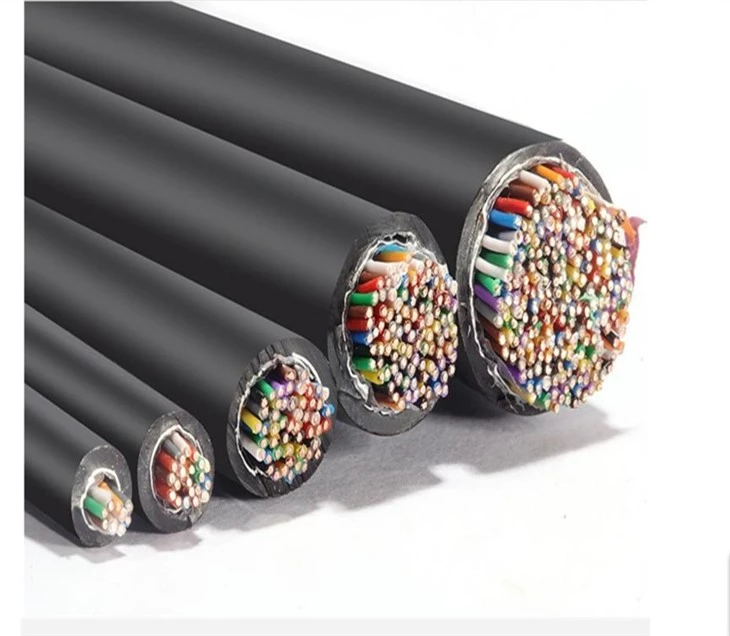

HYA type communication cable
1. Telephone Exchange Systems: Connecting and transmitting telephone lines within urban areas to ensure communication quality.
2. Data Transmission: Used in local area networks (LANs) and other data transmission systems to ensure stable and efficient data transmission.
3. Public Buildings: Internal communication lines in office buildings, commercial centers, residential complexes, etc.
4. Industrial Use: Communication systems in industrial parks, factories, and other industrial facilities.
parameter list
|
Conductor diameter |
φ0.4±0.01mm
|
Working temperature |
-30-60℃
|
|
Insulation color |
White,red,black,yellow,purple
|
Electric strength |
1.0KV no breakdown
|
|
Insulation voltage |
≥3000MΩ/km
|
Working capacitance |
52.0±2.0nF/km
|
|
Standard Cover thickness |
1.4mm±0.02mm
|
Direct current resistance |
Test when 20 ℃
|
|
Cable Max external diameter |
22.5mm±0.02mm
|
Durable years
|
15 years for normal use |
|
The following models are Chinese standards. Support customized self-supporting type and filling type, etc., and armor layer can be added.If there are any inconsistencies in the models, please tell us your purpose, specifications and other customization information, and we will customize them for you. |
|||
Products Description
our products

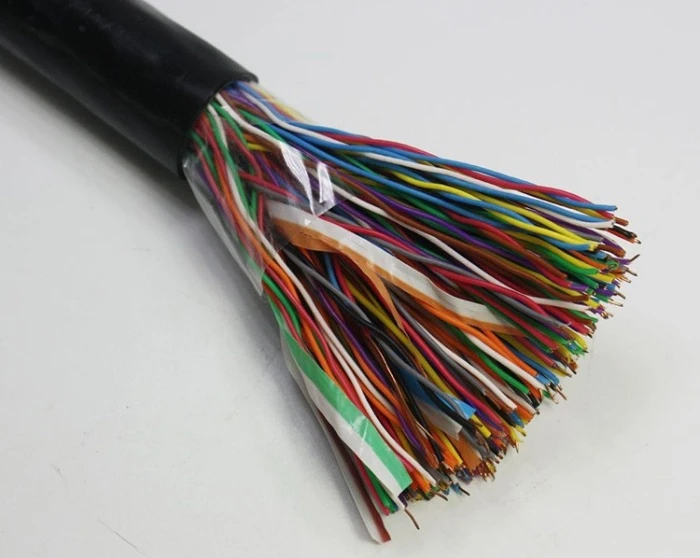

HYA type communication cable
HYA type communication cable
1. Wire material: solid oxygen-free copper wire. The diameter of the copper wire can be customized, such as 0.4, 0.5, 0.6, 0.7,0.8, 0.9mm, etc.
2. Cable core structure: 25 pairs of basic units, 25 pairs of basic units can also be composed of two sub-units of 12 pairs and 13 pairs, and 50 super units can be composed of two 12 pairs and two 13 pairs. Two subunits and 100 superunits make up four 25 basic units. Each unit is supplied with 100% cable ties and 1% spare pairs, but not to exceed 10 pairs, with tape for the specified color spectrum.

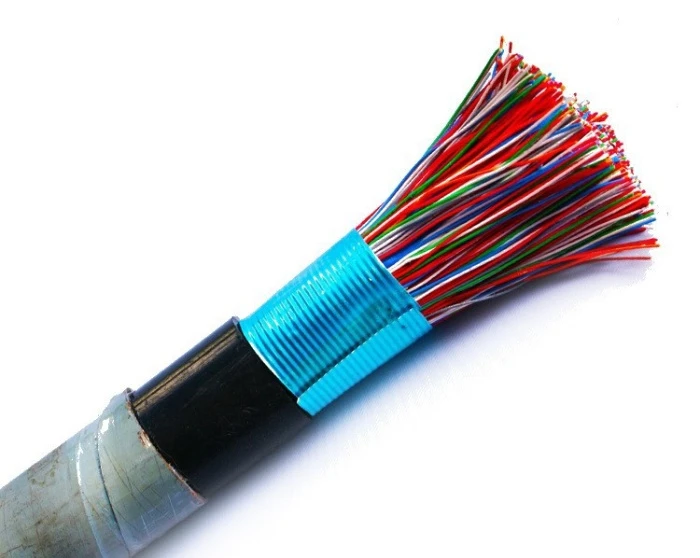

HYA type communication cable
