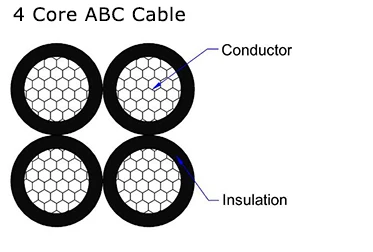

Low-Voltage Overhead Cable Description:
(1)The rated voltage Uo/U is 0.6/1kV.
(2)The maximum rated temperature of cable conductor is 90℃.
(3)Cable shall be laid at no less than -20℃
(4)Minimum allowable bending radius of the cable: Cable with an outer diameter
(D) less than 25mm shall have a diameter no less than 4D.
The outer cable diameter(D) of 25mm and above shall be not less than 6D.
BS 7870-5 standard aluminum overhead aerial bundled abc cable
Products parameter
Aluminum Core Xlpe Insulated Abc Cable Overhead Cable
|
BS 7870-5 Standard ABC Cable |
|||||
|
Number of cores x nominal cross section |
Max. conductor- resistance |
Min. breaking load of conductor strand |
Current rating in the air |
Outer diameter |
Total weight |
|
mm^2 |
Ohm/km |
KN |
A |
mm |
kg/km |
|
1x 16 RM |
1,910 |
2,5 |
72 |
80 |
74 |
|
1x 25 RM |
1,200 |
4,0 |
107 |
90 |
106 |
|
1x 35 RM |
0,868 |
5,5 |
132 |
105 |
138 |
|
1x 50 RM |
0,641 |
8,0 |
165 |
118 |
182 |
|
1x 70 RM |
0,443 |
10,7 |
205 |
130 |
252 |
|
1x 95 RM |
0,320 |
13,7 |
240 |
154 |
333 |
|
1x 120 RM |
0,253 |
18,6 |
290 |
170 |
408 |
|
1x 150 RM |
0,206 |
23,2 |
334 |
190 |
502 |
|
1x 185 RM |
0,164 |
28,7 |
389 |
210 |
611 |
|
1x 240 RM |
0,125 |
37,2 |
467 |
240 |
801 |
|
2x 16 RM |
1,910 |
2,5 |
72 |
156 |
147 |
|
2x 25 RM |
1,200 |
4,0 |
107 |
180 |
208 |
|
2x 35 RM |
0,868 |
5,5 |
132 |
200 |
277 |
|
2x 50 RM |
0,641 |
8,0 |
165 |
235 |
361 |
|
2x 70 RM |
0,443 |
10,7 |
205 |
254 |
505 |
|
2x 95 RM |
0,320 |
13,7 |
240 |
303 |
666 |
|
2x 150 RM |
0,206 |
23,2 |
334 |
380 |
1004 |
|
4x 16 RM |
1,910 |
2,5 |
72 |
188 |
286 |
|
4x 25 RM |
1,200 |
4,0 |
107 |
212 |
430 |
|
4x 35 RM |
0,868 |
5,5 |
132 |
241 |
553 |
|
4x 50 RM |
0,641 |
8,0 |
165 |
278 |
746 |
|
4x 70 RM |
0,443 |
10,7 |
205 |
318 |
1009 |
|
4x 95 RM |
0,320 |
13,7 |
240 |
378 |
1332 |
|
4x 120 RM |
0,253 |
18,6 |
290 |
544 |
1632 |
|
4x 50 + 1x 25 RM |
0,641/1,200 |
8,0/4,0 |
165/107 |
319 |
814 |
|
4x 50 + 1x 35 RM |
0,641/0,868 |
8,5/5,5 |
165/132 |
319 |
845 |
|
4x 70 + 1x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
360 |
1105 |
|
4x 70 + 2x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
400 |
1217 |
|
4x 95 + 1x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
418 |
1438 |
|
4x 95 + 2x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
420 |
1544 |
|
4x120 + 1x 25 RM |
0,253/1,200 |
18,6/4,0 |
290/107 |
590 |
2050 |

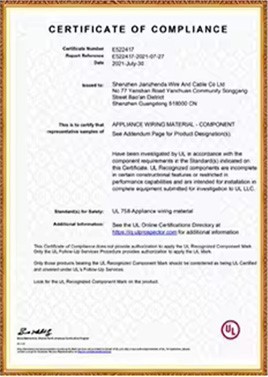

Cable certificate
Chinese cable manufacturing, complete certificates, serving the world
Products application
Aluminum Core Xlpe Insulated Abc Cable Overhead Cable Application:
Aluminum Core Xlpe Insulated Abc Cable Overhead Cable has characters of power-transmitting and strong mechanical. In comparison with bare wire,
Overhead cable boasts many advantages,such as,small span in laying, higher safe reliability, better atmosphere aging resistance property.
Insulated overhead cable has the priority to be used in urban and rural power-transmitting construction project.
This hot sales electric wire have been sold to Europe, Southeast Asia, Middle East, South Africa, getting good reputations from our customers.
