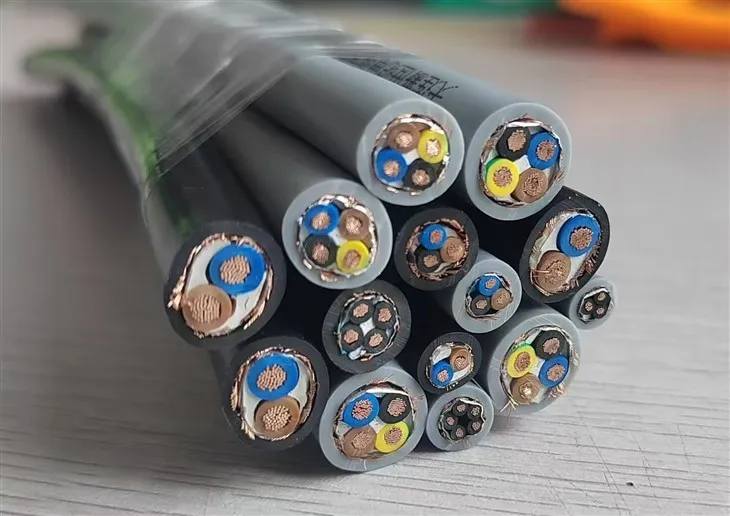

JZ-HF is a European-standard high-flex control cable specially engineered for continuous reciprocating installation inside energy drag chains, designed strictly referencing DIN VDE 0285-525-2-51 & DIN EN 50525-2-51 industrial specification for dynamic machine wiring applications.
Internal Structural Working Principle
The cable adopts a five-layer composite structural design optimized for repeated flex fatigue resistance:
Conductor Layer: Extra-fine bare copper wires stranding in Class6 standard, smaller single copper filament reduces internal shear stress during frequent bending to avoid conductor fracture after long-term movement;
Core Insulation Layer: Z7225 special modified PVC insulation with stable insulation resistance ≥20MΩ·km at ambient temperature, uniform extrusion controlled by online laser thickness inspection to keep eccentricity ≤10% as production QC standard;
Layered Core Stranding: Multi-cores stranded with scientifically calculated optimized lay length, each stranding layer wrapped with non-woven fleece to restrict core displacement during drag chain back-and-forth motion, preventing core friction abrasion inside the cable;
Optional Ground Core: For variants over 3 cores, GN-YE green-yellow protective earth core is fixed on outer core layer per DIN standard; OZ-HF model excludes ground conductor for cost-saving customized demand;
Outer Sheath Layer: DIN-certified TM5 special oil-proof PVC compound extruded as outer jacket (RAL7001 grey), formulated to resist machine mineral oil dilution per DIN EN 60811-404 liquid immersion test regulation.
All raw materials are sourced from certified EU-grade compound suppliers; finished cables go through full batch lab verification before warehouse release, avoiding performance deviation caused by unstable raw material quality. Unlike ordinary Class5 flexible control cables (YSLY series), JZ-HF's structural optimization targets continuous dynamic load instead of static fixed laying, making it the mature option for long-running drag chain wiring in automation equipment.
Specification
| Technical Item | Standard Parameter | Reference Test Standard |
|---|---|---|
| Nominal Voltage U₀/U | 300/500 V | DIN VDE 0281 |
| Routine Withstand Test Voltage | 4000 V (core-core, 5min no breakdown) | IEC 60243 |
| Minimum Breakdown Voltage | ≥8000 V | DIN EN 50363 |
| Minimum Insulation Resistance | ≥20 MΩ·km (20℃ ambient) | IEC 60189 |
| Operating Temperature (Dynamic Flexing) | -10℃ ~ +80℃ | DIN VDE test |
| Operating Temperature (Fixed Installation) | -40℃ ~ +80℃ | DIN VDE test |
| Min.Bending Radius (Dynamic drag chain use) | 7.5 × Cable Outer Diameter | DIN recommended value |
| Min.Bending Radius (Static fixed laying) | 4 × Cable Outer Diameter | DIN recommended value |
| Radiation Resistance | Max 80×10⁶ cJ/kg (80Mrad) | IEC radiation test |
| Standard Core Cross-section Range | 0.5mm² ~ 2.5mm² | DIN copper conductor standard |
| Available Core Quantity | 2 cores ~ 61 cores (G=with PE core / X=without PE core) | Factory customized |
| Standard Outer Sheath Color | Grey RAL7001 | DIN industry norm |
Features
① Dynamic Flex Durability
Accelerated drag chain fatigue test in our in-house lab proves ≥1,000,000 continuous reciprocating bending cycles under standard 7.5×OD bend radius, no core breakage or sheath cracking, matching mainstream European brand JZ-HF performance benchmark; optimized layered fleece wrapping eliminates inner core shift during high-speed drag movement.
② Oil & Chemical Resistance
Outer sheath compound passes DIN EN 60811-404 mineral oil immersion test, no swelling, hardening or cracking after 24h immersion in common industrial machine oil, suitable for lubricant-rich machining workshop environment.
③ Stable Electrical Performance
Class6 ultra-fine copper conductor keeps stable DC resistance within DIN tolerance range after long-term repeated bending; Z7225 insulation maintains consistent insulation resistance under full working temperature span, reducing signal/control circuit failure risk.
④ Wiring Convenience
DIN-standard sequential white digital marking on black cores enables fast field identification without extra core labeling; meter marking printed continuously on outer sheath for accurate on-site cutting and inventory management.
⑤ Environment & Safety Compliance
Zero cadmium, zero silicone in all compound formulations; outer sheath meets IEC60332-1-2 vertical flame retardant requirement, self-extinguishes after flame source removal without flame spreading.
aPPLICATIONS
Core Applicable Industries
CNC machine tool manufacturing, automated robotics, injection molding equipment, intelligent warehouse conveyor system, packaging automation production line, textile automated machinery, metal processing equipment.
Detailed Equipment Scenarios
Reciprocating drag chain wiring for CNC lathe, milling machine feed axis control circuit;
Robot arm moving section control & signal transmission inside energy chain;
Continuous moving trolley control wiring of automated warehouse racking conveyor;
Injection molding machine mold shifting dynamic control cable inside drag track;
Dry & damp indoor fixed control wiring for industrial cabinet auxiliary circuit (non-outdoor application).
why choose us
1. Strict Full-process QC System backed by lab testing equipment
We equip full set cable testing lab: digital micro-ohmmeter for conductor resistance inspection, high-voltage withstand tester, universal tensile machine, professional drag chain bending fatigue tester, abrasion test bench and oil immersion testing tank. Raw material incoming inspection → online extrusion laser dimension monitoring → finished product sampling lab test → pre-shipment batch spot check, four-step QC mechanism, every batch of JZ-HF issues factory test report with measured data for clients' incoming inspection reference.
2. Certified Standard Raw Material Guarantee
Copper adopts 99.99% high-purity oxygen-free bare copper; PVC insulation & sheath compound sourced from DIN-certified raw material manufacturers, each incoming batch with MSDS and third-party certification document, avoiding inferior recycled compound causing early cable aging.
3. Verified Long Service Life for Dynamic Working Condition
All JZ-HF samples pass in-house ≥1 million times bending fatigue test before mass production, our technical team optimizes stranding lay length based on decades drag chain cable production experience to improve flex durability; field feedback from EU machine clients shows average service life reaches 2~3 years under continuous 24h drag chain operation.
4. Stable Electrical Performance for Control Circuit Safety
Strictly follow DIN VDE & IEC dimension and resistance tolerance, finished cable core resistance deviation controlled within ±5% of standard value, preventing unstable control signal caused by excessive conductor resistance rise after long-term flexing.
5. Flexible Customization Capacity to Match Special Client Demand
Support customized core count (2~61 cores), cross-section size, optional shielded version (JZ-HF-CY with 85% coverage tinned copper braid shield) and PUR outer sheath upgrade for heavy coolant-resistant working environment; accept small batch trial order for equipment prototype development.
6. Efficient Production & Stable Delivery Cycle
12 automatic cable extrusion & stranding production lines for JZ-HF serial, regular specification stock available in warehouse for urgent order within 3~5 working days; bulk mass production order delivery lead time controlled within 7~12 working days after deposit confirmation, avoid client production line shutdown delay caused by cable supply shortage.
