Low smoke halogen-free cross-linked polyethylene insulated power cables are suitable for indoor and outdoor fixed installation in low-voltage power systems. For example, the distribution of electrical energy in urban power grids, power or switch stations, and industrial plants.
Conductor:

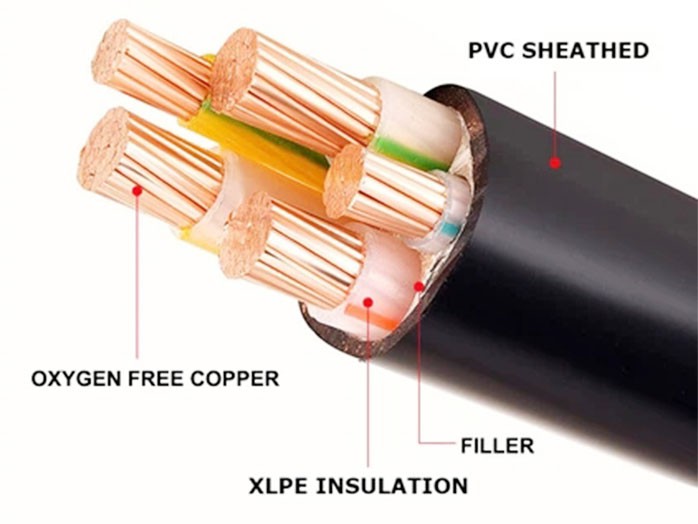

Class 2 ordinary annealed stranded circular or circular compacted oxygen free copper conductor in accordance with IEC 60228. Or Level 5 of IEC 60228 (RV-K type).
Insulation:
Cross linked polyethylene (XLPE) extruded layer in accordance with IEC 60502-1.
Outer sheath:
Polyvinyl chloride (PVC) extruded layer - ST2 type in accordance with IEC 60502-1.
Common models of cross-linked polyethylene power cables

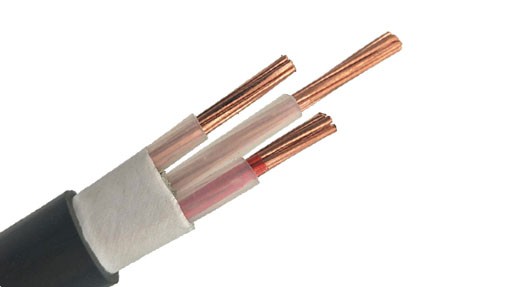

YJV 1 Core
YJV 3 Core

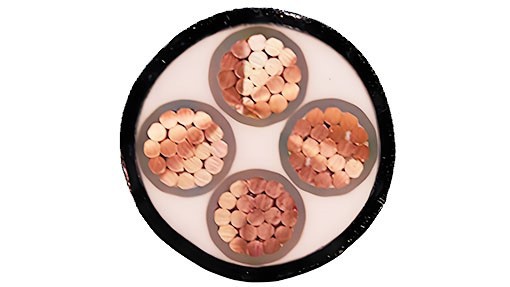

YJV 4+1 Core

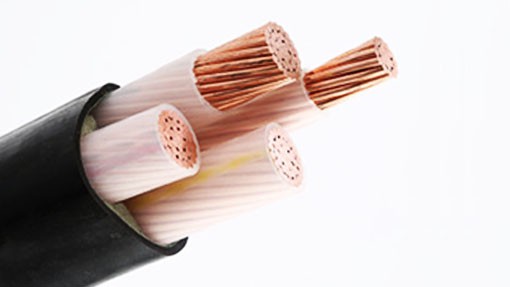

YJV 3+1 Core
YJV 3+2 Core
YJV 4 Core
Products parameter
Standards for Mica Tape Low smoke no halogen Xlpe Insulated power Cable in 0.6/1KV LV
The 0.6KV/1KV PVC insulated (fire-resistant) power cable meets the national standard of GB/T 12706-2008 which is equal to IEC 60502-2004.
The fire resistant property conforms to the GB/T 18380-2008 which means that it also satisfies IEC 60332-2004.
| NO.of cores×section (mm²) |
Normal insulation thickness(mm) |
Normal thickness of oversheath |
Approximate overall diameter of cable(mm) |
Approximate weight of cable(kg/km) |
||||||
| Cu | AL | |||||||||
| Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | |||
| 4×4 | 0.7 | 1.8 | 1.8 | 12.5 | 18.1 | 282 | 430 | / | / | |
| 4×6 | 0.7 | 1.8 | 1.8 | 14.7 | 17 | 383 | 545 | / | / | |
| 4×10 | 0.7 | 1.8 | 1.8 | 16.9 | 19.1 | 565 | 752 | 390 | 517 | |
| 4×16 | 0.7 | 1.8 | 1.8 | 19.3 | 21.6 | 783 | 1020 | 416 | 663 | |
| 4×25 | 0.9 | 1.8 | 1.8 | 23.5 | 25.7 | 1241 | 1502 | 593 | 902 | |
| 4×35 | 0.9 | 1.8 | 1.8 | 26.7 | 28.7 | 1631 | 1957 | 776 | 1096 | |
| 4×50 | 1.0 | 1.8 | 1.9 | 28.0 | 32.6 | 2080 | 2812 | 961 | 1770 | |
| 4×70 | 1.1 | 2.0 | 2.1 | 33.2 | 37.5 | 2952 | 3796 | 1302 | 2222 | |
| 4×95 | 1.1 | 2.1 | 2.3 | 38.0 | 42.6 | 3970 | 4962 | 1693 | 2757 | |
| 4×120 | 1.2 | 2.3 | 2.4 | 40.9 | 46.4 | 4894 | 5913 | 2077 | 3363 | |
| 4×150 | 1.4 | 2.4 | 2.6 | 46.0 | 51.3 | 5980 | 7170 | 2852 | 3878 | |
| 4×185 | 1.6 | 2.6 | 2.7 | 52.5 | 57.8 | 7442 | 8802 | 3173 | 4618 | |
| 4×240 | 1.7 | 2.8 | 3.0 | 59.4 | 64.6 | 9764 | 11289 | 4032 | 5782 | |
| 4×300 | 1.8 | 3.0 | 3.1 | 66.2 | 71.6 | 12122 | 13856 | 4924 | 6735 | |
| 4×400 | 2.0 | 3.3 | 3.4 | 73.8 | 80.3 | 15624 | 18407 | 6272 | 9313 | |
| 4×500 | 2.2 | 3.5 | 3.7 | 89.3 | 96 | 19877 | 23264 | 7667 | 11062 | |
| 4×630 | 2.4 | 3.8 | 4.0 | 99.6 | 106.3 | 25124 | 28895 | 9514 | 13293 | |
Products precaution
Low smoke no halogen Xlpe Insulated power Cable Installation Precautions:
1. The minimum bending radius when laying the cable is not less than 10 times the outer diameter of the cable.
2. yjv / yjlv cables are laid indoors, in channels and pipes, and can also be buried in loose soil, which cannot bear external forces.
3. The yjv22 / yjlv22 cables are laid underground and can withstand external mechanical forces, but cannot withstand large tensile forces.
4. Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during the laying process and keep away from heat sources.
5. When laying the cable through the pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the click.
It is for bidden to squeeze the cable when passing through the pipe. The total area of the cable should not exceed 40% of the total area of the pipe.
Products application
Application Properties for Low smoke no halogen Xlpe Insulated power Cable in 0.6/1KV LV
1. Rated voltage U0/U: 0.6/1kV
2. Permitted long-term working temperature: 70℃
3. Short circuit: Conductor temperature ≤160℃, lasting time ≤5 seconds
4. The ambient temperature should above 0℃ when laying, and preheating is necessary if the temperature is below 0℃. The laying process is not affected by the drop height.
5. Minimum bending radius during laying: 20 times of outer cable diameter for single core type, and 15 times for multi-core type.
6. The neutrality of five-core power cable is distinct from the earth wire, and the system is very stable.
Our Certificates
A complete set of certificates is a reflection of our strength
Products package and transportation
Low smoke no halogen Xlpe Insulated power Cable
