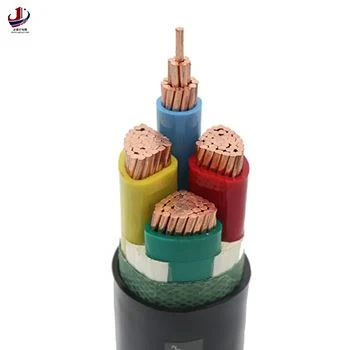

0.6/1kV PVC Insulated Power Cable
video
0.6/1kV PVC Insulated Power Cable

0.6/1kV PVC Insulated Power Cable

Material: Stranded bare copper conductor, PVC insulation, PVC outer sheath
Format: Single core / multi-core round power cable, custom cut-to-length
Compatibility: Power distribution for building, industrial plant, cabinet wiring, underground direct burial, cable tray installation
Opening & Termination: Easy stripping for on-site cable termination and crimping
Finish: Plain sheath; custom printing, brand logo, specification marking available
Dimensions: Custom conductor cross-section, core numbers and finished cable lengths
Inspection: Voltage withstand test, insulation resistance, flame retardant property, dimensional check and peel performance
Applications: 0.6/1kV low voltage power transmission and distribution, residential building power supply, factory internal wiring, commercial project, cable duct, cable tray, direct burial, outdoor fixed laying

Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of 0.6/1kv pvc insulated power cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.



Products Description
0.6/1kV PVC Insulated Power Cable

Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of 0.6/1kV PVC insulated power cable in China, and also supports full customized service. With abundant cable-manufacturing experience, we warmly welcome you to wholesale in-stock low-cost products and get free samples from our factory. For price consultation, please contact us.

0.6/1kV PVC Insulated Power Cable
Custom-Built 0.6/1kV PVC Insulated Power Cable for Your Distribution Project, Laying Environment and Brand Requirement
Shaanxi Jinshenghong Cable Co., Ltd. supplies 0.6/1kV PVC insulated power cables widely used for fixed low-voltage power distribution. Our cable solution is developed according to your actual application conditions: laying method, installation location, ambient temperature, flame retardant grade, burial condition and local standard requirements.
Whether you are undertaking new construction power distribution, renovation project or replacing existing power cables, send your cable specification, sample or construction drawing for a proper cable configuration solution.
Specify the fit. Verify electrical stability. Approve field termination performance.

Choose PVC Insulation & Sheath Grade Matching Your Working Environment

A standard PVC power cable suitable for indoor cable tray may not perform well in direct burial, high temperature or heavy chemical corrosion environments. PVC material grades must match the actual laying conditions. We provide ordinary PVC, flame retardant PVC grades for different scenarios.

Working Environment What to Specify What to Verify
Indoor cable tray / cabinet wiring Ambient temperature, load current, flame retardant requirement Insulation stability, electrical performance, flame retardancy
Direct burial underground Soil moisture, corrosive substance, external mechanical damage risk Sheath mechanical strength, moisture resistance, anti-corrosion
Outdoor overhead / duct laying UV radiation, temperature fluctuation, rain and frost Weather-resistant PVC sheath, anti-aging property
Commercial & residential building Building fire protection requirement, vertical laying Flame retardant grade, smoke performance, long service stability
Factory workshop Oil splash, chemical vapor, mechanical abrasion Oil resistant and abrasion resistant modified PVC sheath

Our product range includes general-purpose PVC insulated power cables and flame retardant PVC series. One single cable construction cannot fit all laying environments.

Unsure of your laying conditions and standard requirements? Send your project specification and site description. Only load current cannot decide the final cable model.

[Submit Sample & Working Condition for Evaluation]

Product Overview

Item Specification Basis
Product 0.6/1kV PVC Insulated Power Cable
Rated Voltage 0.6/1kV
Primary format Single-core, 2/3/4/5-core round power cable, custom cut-to-length
Connection method Fixed laying, suitable for crimping and heat shrink termination
Application compatibility Building distribution, industrial wiring, duct, cable tray, direct burial, subject to construction selection
Termination requirement Easy stripping design verified by field operation test
Appearance Plain sheath or custom printed marking
Dimensions Conductor cross-section, core quantity and finished length based on approved drawing
Order approval Agreed construction, marking content, dimensions, flame retardant grade and acceptance criteria
Chinese domestic models VV, VV22, VVP, VV22P, ZR-VV, ZR-VV22
European / German VDE models NYY, NYCY, NYY-J, NAYY, NAYY-J
American / UL models THHN, THWN, THWN-2, UF-B, PVC building wire
Australian / SAA models V90, V90 PVC power cable, PVC insulated SAA distribution cable
Reference standards GB/T 5023, IEC 60502-1, VDE 0271, NEC, AS/NZS 5000.1

0.6/1kV PVC Insulated Power Cable Construction

Finished 0.6/1kV PVC insulated power cable focuses on stable power delivery, mechanical protection and insulation safety for long-term fixed laying.

Two mainstream construction types are listed below:

Construction Route Simplified Layer Sequence (Conductor outward) Selection Focus
Non-armored PVC power cable Solid / stranded copper conductor / PVC insulation / PVC outer sheath Indoor, cable tray, duct laying, low mechanical impact; Equivalent: NYY, THHN, V90
Steel tape armored PVC power cable Copper conductor / PVC insulation / filler / inner sheath / steel tape armor / PVC outer sheath Direct burial, underground duct, places with mechanical damage risk; Equivalent: NYY-J armored, UF-B

These are typical constructions. Exact PVC material grade, insulation thickness, armor structure and filling material shall be confirmed for each project.



Copper conductor carries continuous power current. PVC insulation provides core electrical isolation, while PVC sheath and armor (if required) offer anti-pressure, anti-abrasion, moisture and corrosion protection. Final service life also depends on laying method, ambient temperature, soil condition and overload control. Performance shall be verified according to real working conditions and local regional standards (VDE / UL / SAA).

Technical Specifications for an Accurate Quotation

A valid quotation must clearly define all cable parameters for purchasing, QC and production teams to compare against approved materials.

Parameter Information to Define
Copper conductor type Solid copper or stranded bare copper
Conductor cross-section mm² or AWG; 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²; 14AWG,12AWG,10AWG,8AWG,6AWG
Core arrangement 1 core, 2 core, 3 core, 4 core, 5 core, 3+1 core, 3+2 core, 4+1 core
Rated voltage 0.6/1kV; 600V (U.L/NEC); 0.6/1kV (VDE / SAA)
Armor requirement Non-armored or steel tape armored (VV22)
Flame retardant grade Ordinary / ZR-A / ZR-B / ZR-C flame retardant; FR, FT4 per U.L; AS/NZS flame class
Working condition Laying method, ambient temperature, direct burial or not, chemical corrosion
Insulation & sheath material Standard PVC / flame retardant PVC / weather-resistant PVC
Surface finish Plain sheath or custom printing marking
Printing / marking Cable type, cross-section, voltage grade, brand logo, batch number
Installation conditions Laying depth, bending radius, pulling force during installation
Certifications required CCC, CE, VDE, U.L,, SAA, RoHS, REACH as requested
Packing Wooden drum packaging, length per drum
Acceptance criteria Dimensional check, insulation resistance, voltage withstand, flame test, stripping property

Size reference: Commonly used cross-sections of 0.6/1kV PVC insulated power cables cover from 1.5 mm² up to 400 mm², corresponding AWG sizes for North American projects from 14AWG to 4/0AWG. This is only industry reference data, not the fixed supply range of Shaanxi Jinshenghong Cable Co., Ltd., and not a universal recommendation. Final conductor size and construction shall follow project design and standard requirements (GB / VDE / U.L / AS/NZS).

Already purchasing PVC power cables? Send your existing specification or sample so quotation matches your technical requirements, whether it is Chinese VV, German NYY, American THHN/UF-B or Australian V90.

Custom Marking, Easy-Strip Design and Armored Structure

0.6/1kV PVC insulated power cable needs clear traceable marking while keeping stable electrical performance and convenient site construction. Marking content can follow different regional standard requirements: VDE standard marking, UL marking sequence or SAA required traceability print.

Confirm these details during drawing approval:

Cable marking: Cable model, rated voltage, cross-section, brand logo, batch and production date.

Easy-strip design: Balanced bonding between insulation and sheath for quick stripping without nicking copper conductors.

Armor structure: Double steel tape wrapping for underground anti-mechanical damage.

SKU control: Independent drawing files for non-armored / armored, different core combinations and flame retardant grades, separate versions for NYY, THHN, V90.

Modified PVC sheath formulas can improve anti-aging, weather resistance and flame retardant performance. Sheath performance needs to be tested under simulated laying environment and local standard test rules.

Validate Performance under Your Actual Installation Conditions

Passing laboratory electrical test is only the first step of technical approval. Simulation tests should also check pulling performance, stripping operation, long-term thermal stability and flame retardant effect, following VDE, NEC or AS/NZS test protocols for target markets.

On-site Possible Issue Points to Investigate Trial Objective
Insulation breakdown Insulation thickness uniformity, PVC material quality, overheating Keep insulation resistance within standard range under long-time operation
Sheath damage after burial Armor quality, sheath abrasion resistance, backfill sharp stone Prevent mechanical piercing during laying and service
Difficult stripping or conductor scratch Insulation-sheath bonding property Smooth stripping without copper damage
Flame spreading in fire accident PVC flame retardant formula, oxygen index Meet specified flame retardant grade requirements (ZR / FT4 / AS/NZS flame class)
Sheath cracking after long-term outdoor use PVC anti-UV and anti-aging property Keep sheath integrity under temperature cycle and sunlight
Marking fading Printing ink adhesion, sheath surface friction Markings remain legible during delivery, laying and operation and meet VDE/UL/SAA marking rules

Termination and Armor Protection Balance

Non-armored PVC cables are light and easy for tray laying; armored cables have strong mechanical protection for underground works. Termination for armored cables needs proper armor grounding treatment, grounding rules differ between European VDE, NEC and Australian wiring codes.

Approval assessment covers:

 Stripping operation for insulation and outer sheath

 Armor continuity and grounding connection

 Insulation integrity after bending

 Thermal aging performance under continuous rated load

Test records should mark temperature, load cycle and laying condition, and reference the correct regional standard. Test results from different standards cannot be compared directly.

Discuss your distribution project, laying scheme or termination questions

From Working-Condition Input to Final Approved Specification

1. Define the application Provide project type, load current, laying way (tray / duct / direct burial), flame retardant requirement, target market standard (GB / VDE / U.L / SAA) and target service life.

2. Review cable configuration Confirm conductor size, core layout, armored or not, flame retardant grade and marking requirements aligned with local standard (NYY / THHN / V90 / VV).

3. Agree trial scheme Confirm sample length, test items and acceptance criteria before bulk production.

4. Validate full-condition performance Check voltage withstand, insulation resistance, flame retardancy, bending and stripping performance under simulated site condition, complying with IEC, VDE, NEC or AS/NZS.

5. Confirm purchasing specification Record approved construction, drawing revision, marking, certification, packing and change control rules.

If laying method, flame retardant grade, armor requirement or target standard changes, re-evaluation is required

Compliance Requirements

For different export markets, refer to GB/T 5023, IEC 60502-1, VDE 0271 for German/EU projects, NEC for USA, AS/NZS 5000.1 for Australia. Evaluation should consider laying method, maximum operating temperature, flame requirement and cable construction. Local electrical codes also need to be followed.

Please inform us of destination country and required certificates/standard (VDE / UL / SAA / GB) in your inquiry so compliance documents can be confirmed early.

Applications and Service Conditions

0.6/1kV PVC insulated power cables are widely used for low voltage power distribution: residential buildings, commercial centers, factory workshops, municipal engineering, cable trench, cable tray, PVC duct and direct burial. Regional alternative names: German NYY/NYY-J, American THHN / THWN / UF-B, Australian V90 PVC power cable.

Service environment guidance:

Indoor tray / cabinet laying: Non-armored VV / NYY / THHN / V90 type is commonly adopted, focus on flame retardancy.

Direct burial underground: Choose steel tape armored VV22 / armored NYY-J / UF-B for anti-external mechanical force.

Outdoor fixed laying: Select weather-resistant PVC sheath against UV and aging, follow local wiring code.

Public building fire control: Use ZR flame retardant PVC cables to meet fire protection requirements, FT4 for UL, AS/NZS flame class for SAA.

Cable approved for indoor tray laying under VDE standard cannot be used directly for direct burial without armor and validation against NEC or AS/NZS requirements.

Bulk Orders, Packing and Delivery Planning

To get an accurate quotation, separate quantity by each core layout, cross-section, flame retardant version and standard system (VV / NYY / THHN / V90).

The quotation shall clearly state: Unit price (per meter), MOQ for each specification, marking setup cost (if any), sample policy, production lead time after drawing approval, packing method and trade terms.

Cables are wound on solid wooden drums to avoid twisting, squeezing and sheath scratching. Drum labels show model, cross-section, total length, batch number and standard mark (VDE / UL / SAA / GB).

Evaluate the overall project cost comprehensively. Underground cable damage, on-site termination failure and power outage loss will greatly affect project benefit.

specification

Nominal cross-sectional area of conductor

mm²

Nominal thickness of insulation

mm

Nominal thickness of sheath

mm

Average Approx.

overall diameter

mm

Approx.weight

kg/km

4X25

0.9

1.8

25

1208

4X35

0.9

1.8

27

1612

4X50

1.0

1.9

28

2057

4X70

1.1

2.0

32

2883

4X95

1.1

2.1

36

3914

4X120

1.2

2.3

39

4902

4X150

1.4

2.4

44

6033

4X185

1.6

2.6

48

7526

4X240

1.7

2.8

54

9781

4X300

1.8

3.0

60

12184

4X400

2.0

3.2

65

15658

5X25

0.9

1.8

25

1504

5X35

0.9

1.8

27

2007

5X50

1.0

1.9

32

2726

5X70

1.1

2.1

37

3823

5X95

1.1

2.2

41

5190

5X120

1.2

2.4

46

6349

5X150

1.4

2.5

50

7869

5X185

1.6

2.7

56

9788

5x240

1.7

2.9

63

12849

5x300

1.8

3.1

70

15920


FAQ

1. Can one 0.6/1kV PVC power cable be used for both indoor tray and direct burial?

Only armored type can be used for direct burial. Ordinary non-armored PVC cables lack mechanical protection and are not suitable for underground burial. Environment and construction must be confirmed separately, whether you select NYY, THHN, V90 or VV.

2. How to choose core number and conductor cross-section?

It depends on load current, phase distribution, laying length and voltage drop. Current value alone is not enough to confirm cable size; also confirm unit (mm² or AWG) for UL projects.

3. What is the difference between VV, NYY, THHN and V90?

VV is Chinese standard PVC power cable; NYY / NYY-J is German VDE PVC power cable; THHN/THWN/UF-B are UL PVC building wires; V90 is SAA Australian PVC power cable. Different standards, test rules and marking requirements.

4. Can we customize cable printing and brand marking?

Yes. Provide marking text, logo and layout. We will confirm printing feasibility, setup charge and MOQ, and adjust marking format to satisfy VDE, UL or SAA traceability rules.

5. What is the minimum bending radius during installation?

Bending radius differs with cable outer diameter and armored structure, also defined differently by VDE, NEC and AS/NZS. We will provide construction parameter for the confirmed cable model and standard.

6. Does flame retardant PVC cable equal fire resistant cable?

No. Flame retardant cable stops flame spreading; fire resistant cable can keep circuit working for a certain time under fire. They are different performance systems, flame test methods vary in VDE, UL and SAA.

7. Can we get samples before bulk order?

Yes. Tell us if you need electrical test samples, marked samples or small trial length, and specify which standard version you need (VV / NYY / THHN / V90). Sample cost and lead time will be confirmed separately.

8. What is the MOQ?

MOQ is decided by conductor cross-section, core arrangement, flame retardant grade, standard system and marking requirement. Send your demand quantity for a precise answer.

9. Can changing cable grade reduce project failure risk?

System reliability depends on cable quality, proper selection, laying quality and load management. Performance upgrade needs corresponding lab verification under target regional standard.

10. What information do you need for quotation?

Project laying method, core & cross-section (mm²/AWG), flame retardant grade, armored or not, target standard (VDE/UL/SAA/GB), quantity, destination market and certificate requirement. Attach your old cable sample or drawing if available.
