Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of medium voltage aluminum armoured power cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
Products Description

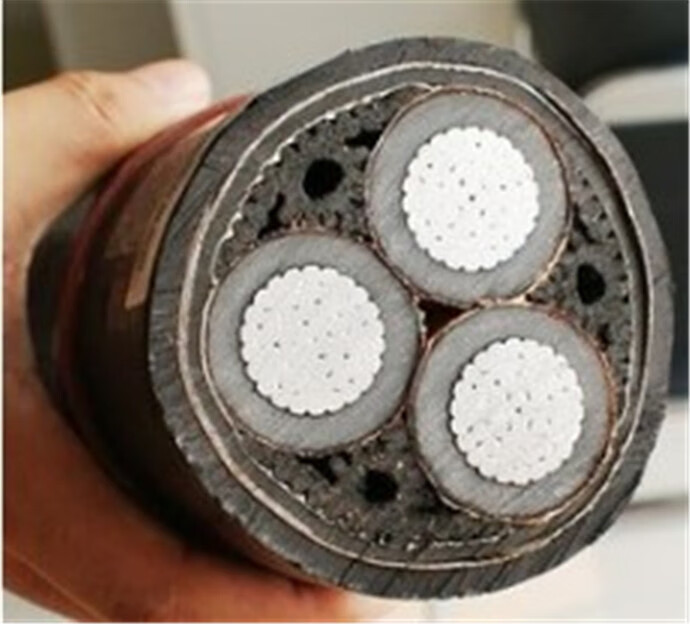

Medium Voltage Aluminum Armoured Power Cable Construction
-Conductor: Solid or stranded Aluminum
-Insulation: Cross-linked polyethylene( XLPE or PVC)
-Circuit Identication: The insulation shall be red, black
-Filler: Polypropylene lament with lapped binding tape
-Inner Sheath: Polyvinyl chloride (Black)
-Armor: Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering: Binding tape
-Outer Sheath: Polyvinyl chloride (Black)
Medium Voltage Aluminum Armoured Power Cable Suitable for 600V~35kV voltage level; Suitable for dry or wet places at 90℃;
Can be installed indoors and outdoors, can be
installed vertically, can also be laid along the wall, can also be buried underground; The bending radius is at least 7 times the
outer diameter, and can also be bent 360°; Applicable to civil, commercial, industrial, school, large venues and other places.
Products parameter
|
Triangular segmental conductor （mm2） |
Approximate cable size（mm） |
|||||||
|
|
1core |
2core |
3core |
3+1core |
4core |
3+2core |
4+1core |
5core |
|
10 |
8.3 |
15.9 |
16.8 |
17.9 |
18.3 |
19.1 |
19.5 |
19.9 |
|
16 |
9.3 |
18 |
19.1 |
20.2 |
20.8 |
21.6 |
22.2 |
22.7 |
|
25 |
10.9 |
21.4 |
22.7 |
23.9 |
24.9 |
25.4 |
26.4 |
27.3 |
|
35 |
11.9 |
23.5 |
25 |
25.8 |
27.4 |
27.1 |
28.6 |
30.3 |
|
50 |
13.5 |
26.8 |
28.6 |
30.1 |
31.7 |
31.9 |
33.6 |
35.1 |
|
70 |
15.3 |
30.8 |
33.1 |
34.3 |
36.7 |
36.5 |
38.4 |
40.6 |
|
95 |
17.1 |
34.2 |
36.7 |
38.4 |
40.7 |
41.1 |
43.2 |
45 |
|
120 |
18.8 |
38 |
40.8 |
43.2 |
45.3 |
46.4 |
48.3 |
50.3 |
|
150 |
21.1 |
42.8 |
45.8 |
47.4 |
51 |
50.2 |
53.4 |
56.6 |
|
185 |
23.2 |
47 |
50.5 |
52.2 |
56.3 |
55.4 |
58.8 |
62.5 |
|
240 |
25.9 |
52.7 |
56.6 |
58.5 |
63 |
62 |
66.1 |
70 |
|
300 |
28.2 |
57.9 |
62.2 |
64.6 |
69.3 |
68.7 |
72.9 |
76.9 |
|
400 |
32.1 |
65.7 |
70.6 |
73.1 |
78.8 |
77.4 |
82.5 |
87.5 |
|
500 |
35.6 |
73 |
78.7 |
81.6 |
87.8 |
86.5 |
92.1 |
97.7 |
|
630 |
39.7 |
81.9 |
88.2 |
91.2 |
98.4 |
96.6 |
102.9 |
109.3 |
|
Triangular segmental conductor（mm2） |
Approximate cable weight （kg/km） |
|||||||
|
|
1core |
2core |
3core |
3+1core |
4core |
3+2core |
4+1core |
5core |
|
10 |
83 |
231 |
274 |
310 |
329 |
352 |
370 |
389 |
|
16 |
108 |
301 |
361 |
411 |
439 |
469 |
496 |
524 |
|
25 |
150 |
420 |
512 |
580 |
629 |
661 |
708 |
756 |
|
35 |
187 |
518 |
640 |
700 |
792 |
777 |
865 |
970 |
|
50 |
245 |
679 |
847 |
959 |
1071 |
1079 |
1203 |
1313 |
|
70 |
319 |
900 |
1145 |
1271 |
1448 |
1443 |
1598 |
1775 |
|
95 |
410 |
1137 |
1455 |
1638 |
1844 |
1875 |
2078 |
2265 |
|
120 |
500 |
1402 |
1798 |
2075 |
2281 |
2398 |
2599 |
2826 |
|
150 |
624 |
1767 |
2242 |
2494 |
2871 |
2808 |
3175 |
3553 |
|
185 |
762 |
2140 |
2749 |
3055 |
3517 |
3459 |
3883 |
4350 |
|
240 |
961 |
2705 |
3479 |
3386 |
4450 |
4363 |
4939 |
5502 |
|
300 |
1161 |
3304 |
4258 |
4753 |
5447 |
5388 |
6068 |
6733 |
|
400 |
1525 |
4284 |
5537 |
6162 |
7126 |
6934 |
7874 |
8804 |
|
500 |
1879 |
5291 |
6881 |
7682 |
8845 |
8664 |
9799 |
10969 |
|
630 |
2332 |
6621 |
8605 |
9573 |
11050 |
10816 |
12209 |
13694 |
Products process
Products package
Jinshenghong Cable ensures secure packaging and transportation of the Medium Voltage Aluminum Armoured Power Cable.
The cables are carefully coiled, wrapped with protective materials, and packaged in sturdy wooden or cable drums.
This packaging method protects the cable from potential damage during transportation and storage, ensuring its quality upon arrival.
our advantages
1. Reliable Power Transmission: The cable ensures efficient and safe power delivery in medium voltage applications.
2. Durable Construction: The cable's robust construction, high-quality materials, and armored protection provide durability and longevity.
3. Compliance and Certifications: Jinshenghong Cable's commitment to quality and safety is reflected in the cable's compliance with industry standards and certifications.
4. Expertise and Experience: With years of experience in the cable industry, Jinshenghong Cable has a proven track record of delivering reliable products and excellent customer service.
FAQ(Frequently asked questions)
Q1: What are the advantages of using aluminum conductors in the cable?
A: Aluminum conductors offer lightweight and cost-effective solutions for medium voltage power transmission while maintaining excellent conductivity properties.
Q2: Can this cable be used for underground installations?
A: Yes, the cable is suitable for underground installations, providing reliable power transmission in diverse environments.
Q3: What types of armor options are available for this cable?
A: The cable is available with a steel tape or wire armor, providing enhanced mechanical protection in addition to the aluminum conductors.
Q4: Is the cable suitable for renewable energy projects?
A: Yes, the Medium Voltage Aluminum Armoured Power Cable is suitable for renewable energy projects, ensuring efficient power transmission in solar, wind, or hydroelectric installations.
Q5: Does the cable comply with relevant industry standards and certifications?
A: Yes, Jinshenghong Cable ensures that the cable meets relevant industry standards and has obtained various certifications to guarantee its quality and performance.
contact us
Choose Jinshenghong Cable's Medium Voltage Aluminum Armoured Power Cable for efficient and reliable medium voltage power transmissio.
Contact us today to discuss your specific requirements, place an order, or request further information.
