Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of yy cy sy liycy flexible control cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
Products Description

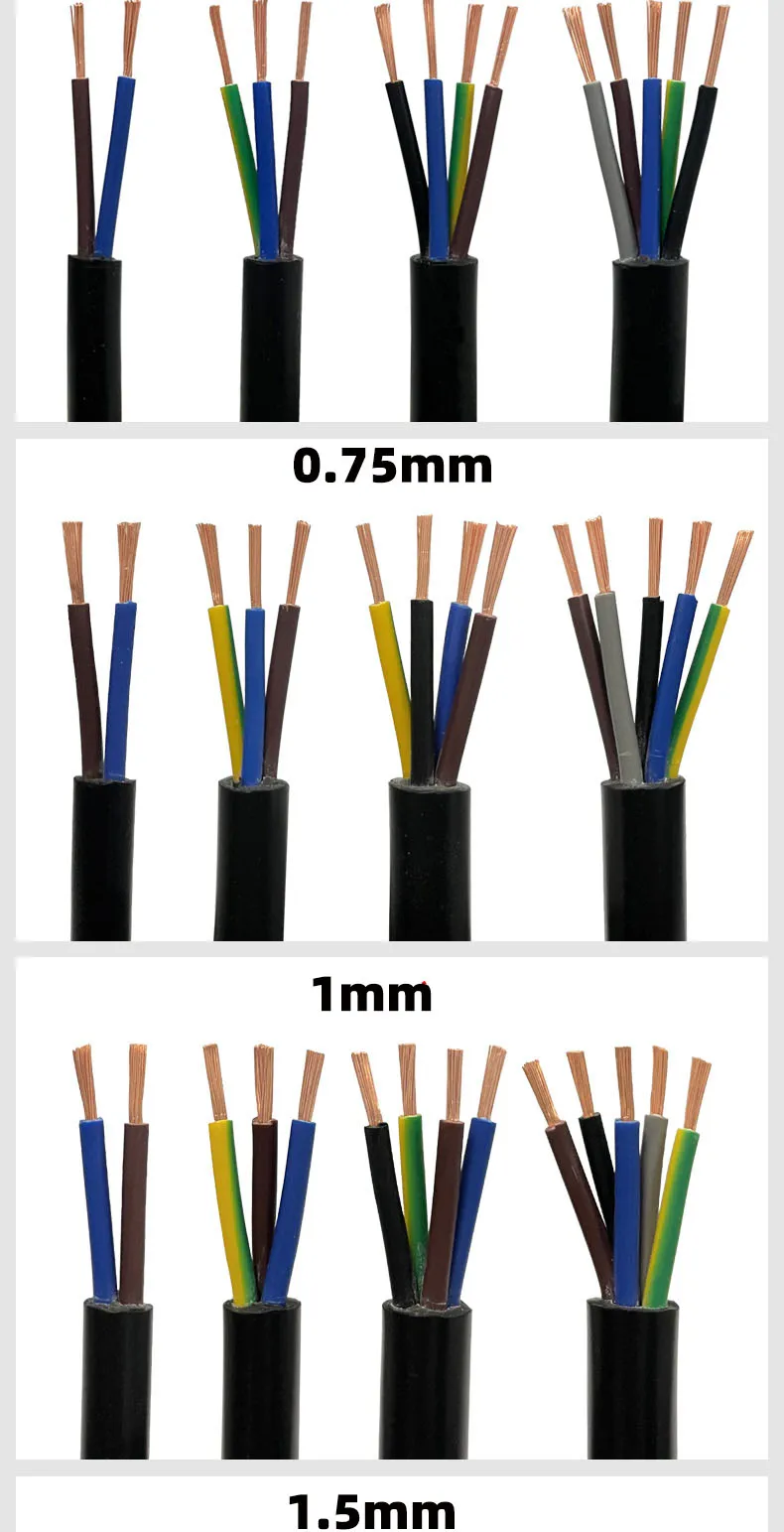

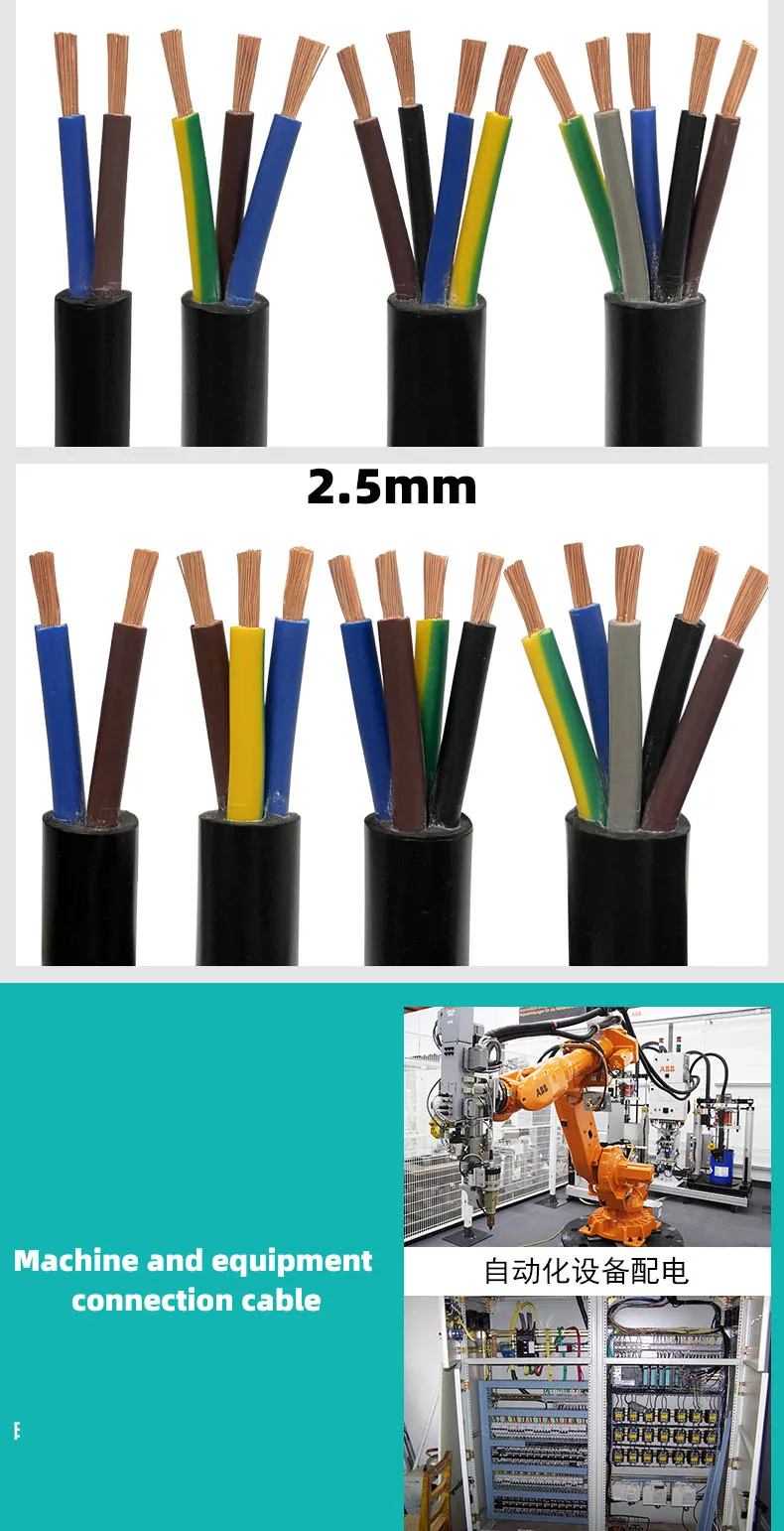

YY CY SY LiYCY Flexible Control Cable is a type of flexible electrical cable commonly used in low-voltage applications, primarily for indoor use. Here's some information about this cable:
Construction: RVV Soft Electric Cable typically consists of the following components:
- Conductor: It has multiple stranded copper wires that provide good conductivity and flexibility.
- Insulation: The conductor is insulated with PVC (Polyvinyl Chloride) material, which provides electrical insulation and protection.
- Sheath: The entire cable is covered with another PVC sheath, providing additional insulation and mechanical protection
More Products:YY CY SY LiYCY Flexible Control Cable
|
Model |
Rated Voltage |
Name |
Application |
Rated Temperature |
|
60227IEC02 RV |
450/750V |
Copper conductor PVC insulated flexible battery cable (electrical wire)
|
Mainly used at middle and light style moving electronics, instrument,home appliances,industrial machine,power and lighting and the places where flexible required
|
0°C to +70°C
|
|
60227IEC06 RV |
300/500V |
|||
|
60227IEC42 RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire)
|
||
|
RVS
|
300/300V |
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227IEC52 RVV |
300/300V |
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
|
60227IEC53 RVV |
300/500V |
Products parameter
|
VDE PVC cables |
||||||
|
conductor
|
Insulator
|
Packing
|
||||
|
Style
|
conductor size (sq.mm) |
Conductor consitruction NO.X |
Insulator thick mm |
Over Diameter mm |
Mt/coils |
Kg/Meter |
|
H05RN-F 60245 IEC 57 |
0.75X2
|
24/0.2
|
0.6
|
6.2
|
300
|
0.065
|
|
1.0X2
|
32/0.2
|
6.8
|
0.076
|
|||
|
0.75X3
|
24/0.2
|
6.8
|
0.08
|
|||
|
1.0X3
|
32/0.2
|
7.2
|
0.1
|
|||
|
H05RR-F 60254 IEC 53 |
0.75X2
|
24/0.2
|
0.6
|
6.2
|
300
|
0.065
|
|
1.0X2
|
32/0.2
|
0.6
|
6.8
|
0.076
|
||
|
1.5X2
|
30/0.25
|
0.8
|
8.4
|
200
|
0.12
|
|
|
2.5X2
|
49/0.25
|
0.9
|
9.8
|
100
|
0.17
|
|
|
0.75X3
|
24/0.2
|
0.6
|
6.8
|
300
|
0.08
|
|
|
1.0X3
|
32/0.2
|
0.6
|
7.2
|
0.1
|
||
|
1.5X3
|
30/0.25
|
0.8
|
8.5
|
200
|
0.13
|
|
|
2.5X3
|
49/0.25
|
0.9
|
10.5
|
100
|
0.2
|
|
Products application
Common Applications: This cable is commonly used for indoor wiring applications, including but not limited to the following:
Power supply connections for household appliances, such as lamps, fans, and small electronics.
Wiring for light fixtures, switches, and sockets in residential and commercial buildings.
Electrical connections for office equipment, audio/video devices, and other small appliances.
H03VV-F RVV wire is designed for flexible use where the cable needs to be moved or bent frequently.
It is commonly used in applications where space is limited, and a small,
highly flexible cable is required. The cable is easy to install and offers reliable and consistent performance over time.
Products package and transportation
YY CY SY LiYCY Flexible Control Cable wire is usually packaged on a reel or in a box. During transportation,
it is essential to protect the wire from physical damage and moisture.
FAQ
Q: What is the difference between H03VV-F and H05VV-F wire?
A: Both cables are flexible and designed for indoor use, but H05VV-F wire has a higher voltage rating and can carry more current than H03VV-F wire.
Q: Can YY CY SY LiYCY Flexible Control Cable wire be used in wet environments?
A: No, RVV wire is designed for dry or damp environments only.
Q: What is the maximum operating temperature for the RVV wire?
A: The wire can operate at temperatures up to +70°C.
