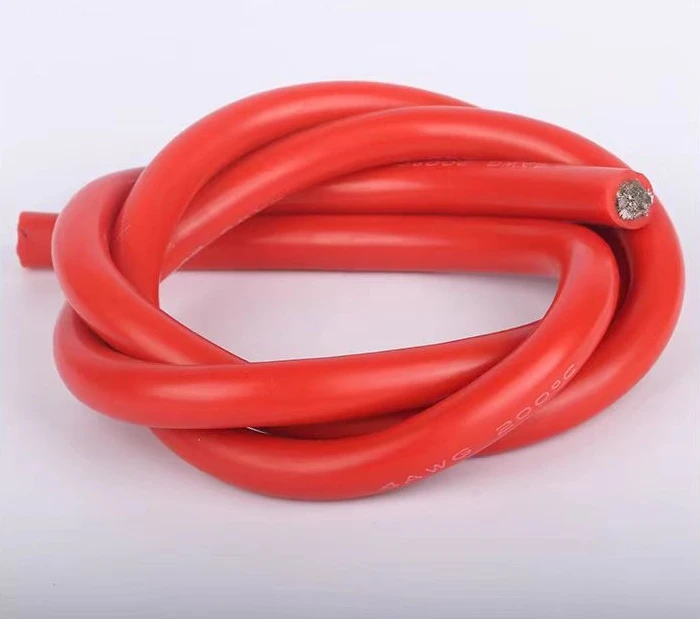

High Temperature Resistant Silicone Cable
video
High Temperature Resistant Silicone Cable

High Temperature Resistant Silicone Cable

Products Description High temperature resistant silicone cable It is suitable for use in the ambient temperature range of not less than -60 ° C when the long-term allowable working temperature of the cable is +180 ° C or below. It is used for electrical connection between mobile...
Send Inquiry
Chat Now

Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of high temperature resistant silicone cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.



Products Description



337aa3b1eacef98c92d553ff8c2db23



High temperature resistant silicone cable

It is suitable for use in the ambient temperature range of not less than -60 ° C when the long-term allowable working temperature of the cable is +180 ° C or below. It is used for electrical connection between mobile electrical appliances in high temperature environment such as power generation, metallurgy, chemical industry and so on. Wiring of household appliances, lighting fixtures, electronic equipment, electric heating products, heavy machinery, electric power installation, industrial machinery, electric heating products and other high temperature places, as well as internal connections for microwave ovens, fax machines, printers, copiers, scanners and other machines and instruments, motor wiring and electronic, fuel and other high temperature environment

150℃~300℃



rated temperature



600V


Rated Voltage


silicone rubber




insulating material



5year


Production experience



Products Description



90d6dfb1d5a1909abb3231d39a53b08
Executive standard

◆ Standard: U/L758, U/L1581 and CSA C22.2 NO.210.2,IEC60754-2, RoHS
◆ Conductor using 28-10AWG single or stranded bare copper or tinned copper wire
◆ Silicone rubber insulation
◆ Uniform insulation thickness, easy to peel and cut
◆ Through FT2 horizontal combustion test application:
Used for internal connections of electronic and electrical equipment, such as motors.

16e399b9922537174cb21d2cd71e335
Feature

It has good acid resistance, alkali resistance, anti-fungal characteristics, resistance to hot and humid environment and a variety of grease resistance, while the cable has good softness performance, waterproof, pressure resistance and other advantages.

product-600-450

who choose us?



We can customize cable products according to the specific needs of our customers, including size, material, and performance, ensuring they receive the most suitable solutions. Our foreign trade team is experienced and knowledgeable about international market regulations, capable of quickly responding to customer needs and providing top-notch service. The cables we offer meet international standards, with excellent durability and safety, making them suitable for various environments.

one-stop solution

professional team

high quality



Certifications

Create a comprehensive solution for efficient human theft manag

1d458c3173b986ce92f62660b02438d

Certificate

2cd6de2e6f5d160faceda484a164253

Certificate

5c4d0e5e81022986b2562c92b02ea3b

Certificate

5caef1a71c37d5a87d802223a79a07a

Certificate

7601d40f37f832b80ae9ea8cbdc675e

Certificate

ac23210786b97efef6315bd0d6134ad

Certificate





Products Description
Specifications
(AWG)
Copper min
share (compos.NOmm)
Sectional
Area(mm²)
Diameter
(mmm)
Jacket
thickness
Orerall
diameter (mm)
Max.cond.
resistance (ΩKM,20-C)
4/0 AWG
21300/0.08TC
107.20
13.49
2.03
19.50
0.02
3/0 AWG
16900/0.08TC
85.01
12.01
2.03
18.50
0.22
2/0 AWG
13400/0.08TC
67.43
10.70
2.03
16.80
0.28
1/0 AWG
10600/0.08TC
53.49
9.51
2.03
15.50
0.35
1AWG
8400/0.08TC
42.41
8.47
2.03
14.50
0.44
2AWG
6600/0.08TC
33.62
7.51
1.53
12.50
0.56
3AWG
5300/0.08TC
26.67
6.73
1.53
11.80
0.70
4AWG
4200/0.08TC
21.15
5.99
1.53
11.00
0.88
5AWG
3300/0.08TC
16.77
5.31
1.53
10.50
1.11
6AWG
2610/0.08TC
13.30
4.72
1.53
9.80
1.41
7AWG
2090/0.08TC
10.55
4.22
1.53
9.30
1.76
8AWG
1660/0.08TC
8.37
3.76
1.53
8.80
2.23
9AWG
1300/0.08TC
6.63
3.33
1.15
7.50
2.88
10AWG
1040/0.08TC
5.26
2.98
1.15
7.20
3.62
11AWG
820/0.08TC
4.17
2.65
0.76
5.20
4.57
12AWG
650/0.08TC
3.31
2.36
0.76
4.90
5.75
13AWG
520/0.08TC
2.63
2.11
0.76
4.60
7.26
14AWG
410/0.08TC
2.08
1.87
0.76
4.40
9.25
15AWG
325/0.08TC
1.65
1.67
0.76
4.20
11.60
16AWG
260/0.08TC
1.31
1.49
0.76
4.00
14.70
17AWG
205/0.08TC
1.04
1.32
0.76
3.80
18.50
18AWG
163/0.08TC
0.82
1.18
0.76
3.70
13.50
19AWG
130/0.08TC
0.65
1.05
0.76
3.60
29.50
20AWG
103/0.08TC
0.52
0.94
0.76
3.50
37.40
21AWG
82/0.08TC
0.41
0.84
0.76
3.40
46.90
22AWG
64/0.08TC
0.33
0.74
0.76
3.30
59.40
23AWG
52/0.08TC
0.26
0.67
0.76
3.20
74.50
24AWG
41/0.08TC
0.20
0.59
0.76
2.40
94.20
25AWG
32/0.08TC
0.16
0.52
0.76
2.30
119.00
26AWG
26/0.08TC
0.13
0.47
0.76
2.20
150.00
27AWG
20/0.08TC
0.10
0.41
0.40
1.40
188.00
28AWG
16/0.08TC
0.08
0.37
0.40
1.30
239.00
29AWG
12/0.08TC
0.06
0.32
0.40
1.20
297.00
30AWG
10/0.08TC
0.05
0.29
0.40
1.10
381.00









 RFQ




product-470-408

01.1. How does your factory control quality?

We are a Medium size factory, more than 15 quality staffs use CKP, PFMEA to manage our production process, we have made a lot of wires and cables for Automobiles, Boats and industries. All products are 100% checking before Delivery.

2. Is there any environmental risk on materials?

We are an ISO9001/ISO14001 certificated company, All our materials are RoHS 2.0 compliant, we select materials from big company and always be tested. Our products have exported to Europe and North America for more than 10 years, we can provide COC if needed.

3. How can I customize our wires or cables?

If you have wire composition or specification data please send to us, if no drawings please send us photos or samples, then tell us your SPEC. For a wire we need to know the OD, conductor size, insulation material, etc.

4. Can you supply OEM & ODM service?

Yes. We have specialized in manufacturing high quality cables, wire harnesses and connectors for more than 10 years, we have a professional engineering team, OEM & ODM projects are warm welcome.

5. What is your lead time for mass production?

Honestly, it depends on order quantity and products complexity. Normal lead time is 3-6 weeks.

6. Any warranties with your products?

We manufacturer long life, durable products for industries, cables and connectors we provide 5-10 years Warranties,This is the longest warranties in our industries, only we can give our customer this promise.
