Shaanxi Jinshenghong Cable Co., Ltd. is one of the most reliable manufacturers and suppliers of strengthen flat elevator cat6 network cable in China. Please feel free to wholesale high quality customized products at low price from our factory. For free sample and cheap products, contact us now.
Products Description

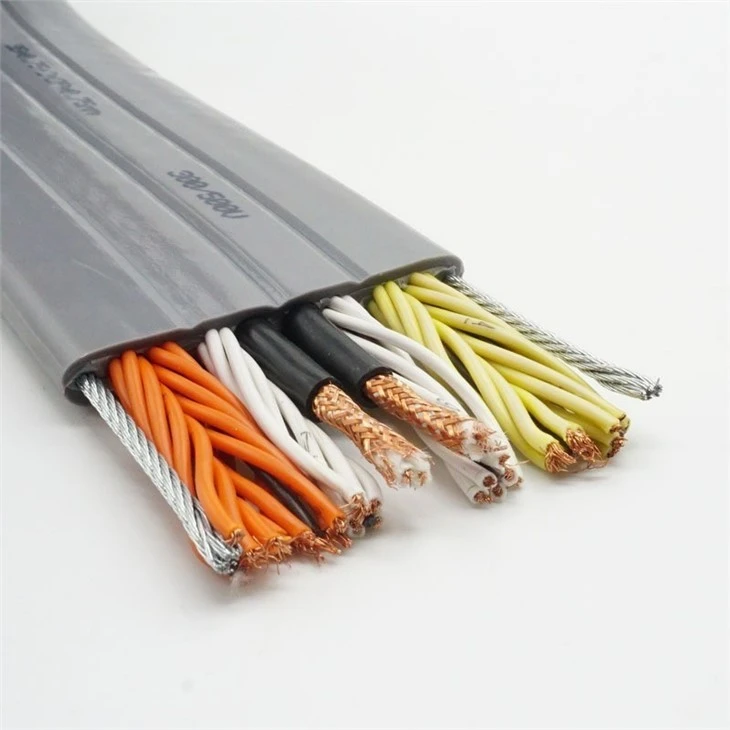

Strengthen flat elevator CAT6 network CABLE Feature:
| Model NO.: | TVVB/H05VVH6-F | Conductor Type: | Stranded |
| Conductor Material: | Copper | Insulation Material: | PVC/Rubber |
| Range of Application: | Elevator Parts | Operating Temperature: | -15~+70 |
| Color: | Black/Grey/Orange | Sample: |
Available |
| Specification: |
227 IEC 71f (TVVB)300/500V 0.75~1.0mm2 (3~24)core |
Application: | Construction/Elevator |
| Material Shape: | Flat Wire | Certification: | ISO9001, CE, UL, CCC, RoHS, VDE |
| Related Voltage: | 300/500V ; 450/750V | Core: | 2-66core |
| Product Name: | 60*1.0 Elevator Cable/Flat Elevator Cable | Transport Package: | Roll, Drum or as Per Customer Request |
Products parameter
Strengthen flat elevator CAT6 network CABLE
| Cores count | Nominal cross section(mm²) | Nominal thickness of insulation(mm) | interval/mme1 | Nominal thickness of sheath(mm) | Min.Insulation Resistance at 70℃(MΩ.KM) | |
| e2 | e3 | |||||
| 3-60 | 0.75 | 0.6 | 1.0 | 0.9 | 1.5 | 0.011 |
| 3-60 | 1 | 0.6 | 1.0 | 0.9 | 1.5 | 0.01 |
| 3-60 | 1.5 | 0.7 | 1.0 | 1.0 | 1.5 | 0.01 |
| 3-60 | 2.5 | 0.8 | 1.5 | 1.0 | 1.8 | 0.009 |
| 3-24 | 4 | 0.8 | 1.5 | 1.2 | 1.8 | 0.007 |
| 3-24 | 6 | 0.8 | 1.5 | 1.2 | 1.8 | 0.006 |
| 3-24 | 10 | 1.0 | 1.5 | 1.4 | 1.8 | 0.0056 |
| 3-24 | 16 | 1.0 | 1.5 | 1.5 | 2 | 0.0046 |
| 3-24 | 25 | 1.2 | 1.5 | 1.6 | 2 | |
| Cores count | Nominal cross section(mm²) | Structure of conductor | Max. size of shape(mm) |
| 34 | 30×0.75+2×(2×0.75)P | 30×30/0.18+2×(2×30/0.18) | 52.0×9.5 |
| 40 | 36×0.75+2×(2×0.75)P | 36×30/0.18+2×(2×30/0.18) | 56.0×9.5 |
| 52 | 48×0.75+2×(2×0.75)P | 48×30/0.18+2×(2×30/0.18) | 68.0×9.5 |
Products application
The Strengthen flat elevator CAT6 network CABLE by Jinshenghong Cable is specifically designed for elevator systems,
where electromagnetic interference can affect the performance and safety of the system.
It is suitable for installation in elevator shafts, control panels, and other elevator-related applications.
This cable ensures the reliable and interference-free operation of elevators in various buildings and structure
Products package and transportation
Strengthen flat elevator CAT6 network CABLE ensures secure packaging and transportation of the cable. The Shielded Elevator Cable is carefully coiled and packaged in protective materials to prevent damage during transit.
Special care is taken to maintain the cable's integrity and shielding performance.
company advantages
FAQ(Frequently asked questions)
Q1: Can this cable be used in both passenger and freight elevators?
A: Yes, the cable is suitable for installation in both passenger and freight elevators, providing reliable power and signal transmission in various elevator types.
Q2: Does the cable come in different core configurations?
A: Yes, the cable is available in different core configurations, including varying numbers of cores, to accommodate specific elevator system requirements.
Q3: Is the cable compliant with safety standards for elevator applications?
A: Yes, the cable complies with safety standards and regulations applicable to elevator systems, ensuring safe and reliable operation.
Q4: Can the cable be customized to meet specific project requirements?
A: Yes, Jinshenghong Cable offers customization options to meet specific project requirements. Contact us to discuss your customization needs.
Q5: What is the typical installation environment for this cable?
A: The cable is typically installed in elevator shafts, control panels, and other elevator-related applications, where electromagnetic interference can affect elevator performance.
contact us
Choose Jinshenghong Cable's Strengthen flat elevator CAT6 network CABLE for reliable and interference-free power and signal transmission in elevator systems. Contact us today to discuss your specific requirements, place an order, or request further information.
Contact Information:
Jinshenghong Cable
Hot Tags: strengthen flat elevator cat6 network cable, China strengthen flat elevator cat6 network cable manufacturers, suppliers, Lift Travelling Cable, Multi Core Flat Elevator Cables, Shielded Elevator Cable, Flat Special Elevator Cable, Elevator Flat Cable, Flexible Utp Cat5e Elevator Cable
